Connector Terminal Identification - Accessory Power Supply
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

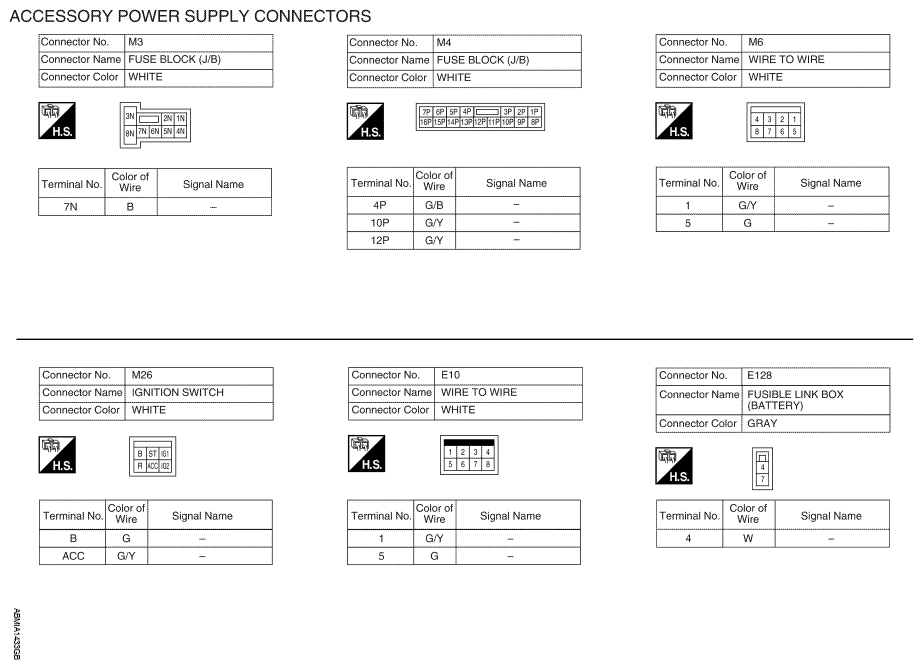

Fig 1: Identifying Accessory Power Supply Connectors (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

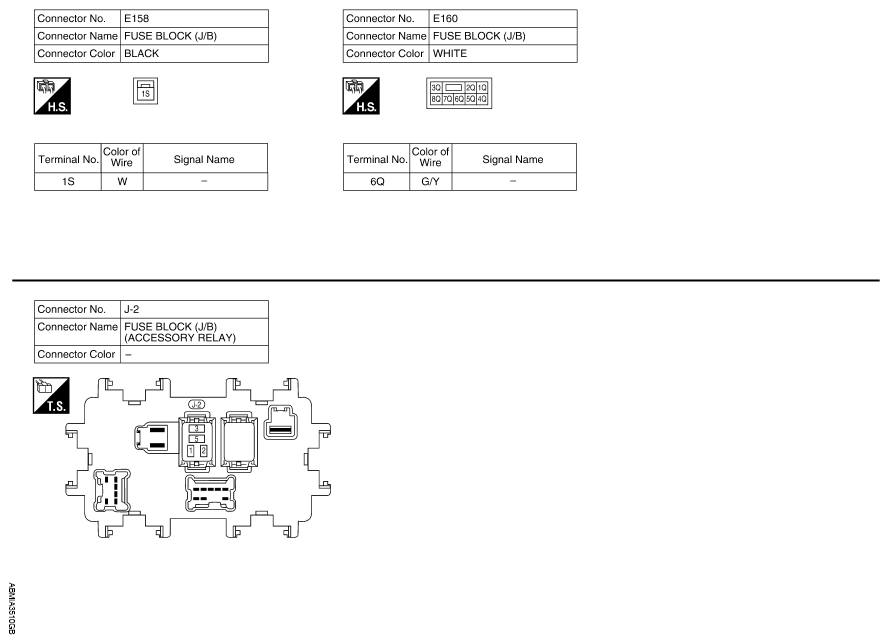

Fig 2: Identifying Accessory Power Supply Connectors (2 Of 2)
