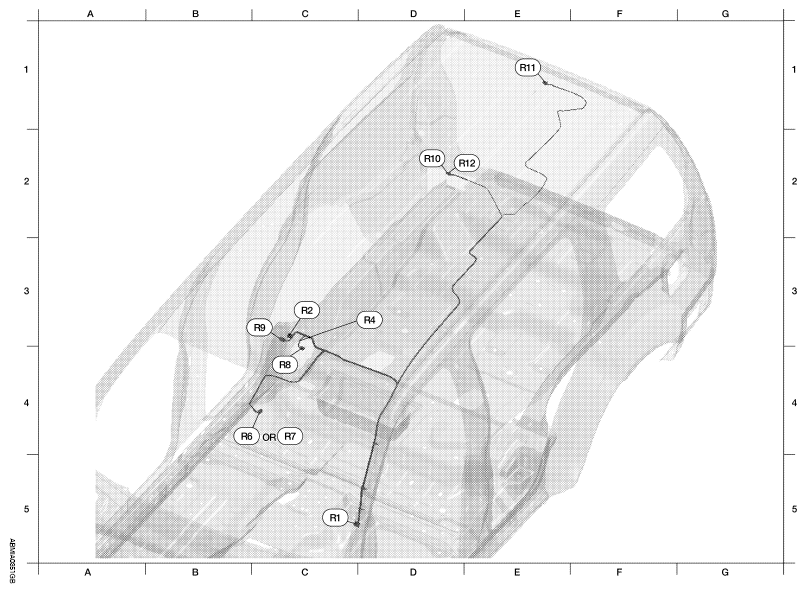

Room Lamp Harness
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
| C5 | R1 | W/24 | : To M1 | C4 | R8 | W/4 | : Microphone |
| C3 | R2 | B/10 | : Rear air control (front) | C3 | R9 | W/3 | : Front room/map lamp assembly |
| D3 | R4 | W/3 | : Sunroof switch | D2 | R10 | W/3 | : Personal lamp 2nd row |
| B4 | R6 | W/7 | : Auto anti-dazzling inside mirror (without HOMELINK® universal transceiver) | E1 | R11 | W/2 | : Cargo lamp |
| C4 | R7 | B/10 | : Auto anti-dazzling inside mirror (with HOMELINK® universal transceiver) | E2 | R12 | W/2 | : Room lamp 2nd row |
