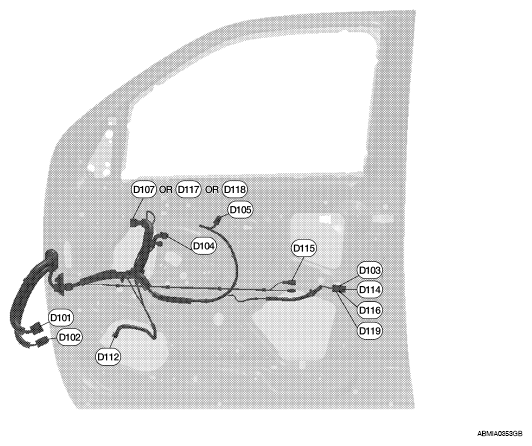

Front Door RH Harness
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
| D101 | W/12 | : To M75 | D114 | W/2 | : Front door lock actuator RH |
| D102 | W/16 | : To M74 | D115 | GR/2 | : Front outside antenna RH |
| D103 | B/3 | : Front door lock assembly RH (door unlock sensor) | D116 | GR/2 | : Front door request switch RH |
| D104 | B/6 | : Front power window motor RH | D117 | B/3 | : Door mirror RH (without heated mirrors) |
| D105 | W/16 | : Power window and door lock/unlock switch RH | D118 | B/10 | : Door mirror RH (with automatic drive positioner) |
| D107 | B/10 | : Door mirror RH (with heated mirrors) | D119 | W/2 | : Front door lock assembly RH (door lock actuator) |
| D112 | W/2 | : Front door speaker RH | - | - | - |
