Engine Room Harness (Passenger Compartment)

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

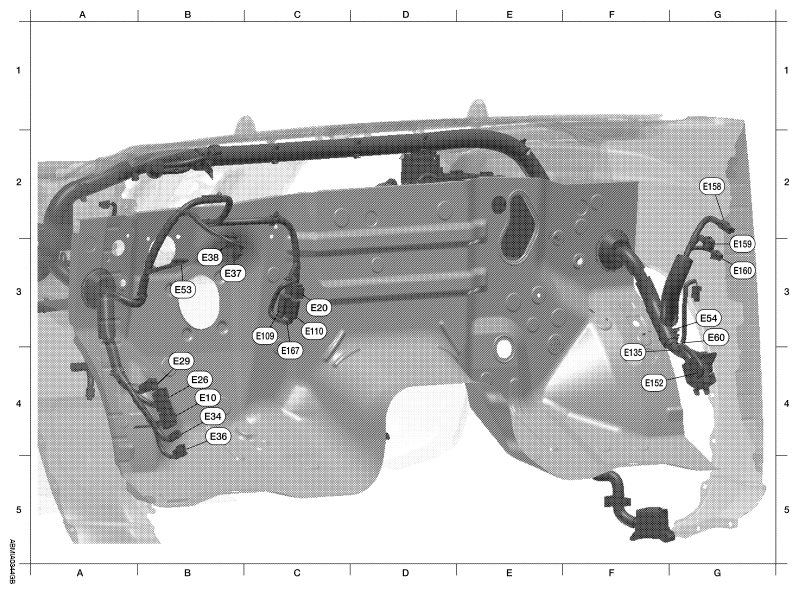

Fig 1: Identifying Engine Room Harness And Connectors (Passenger Compartment)

Courtesy of NISSAN NORTH AMERICA, INC.

B4	E10	W/8	: To M6	G3	E60	BR/3	: Intelligent Key warning buzzer
C3	E20	B/6	: Accelerator pedal position (APP) sensor	C3	E109	GR/2	: Pedal adjusting motor assembly
B4	E26	W/16	: To M91	C3	E110	B/3	: Pedal adjusting motor assembly
B4	E29	Y/4	: To M10	F4	E135	GR/2	: Transfer dropping resistor
B4	E34	W/8	: To B40	F4	E152	SMJ	: To M31
B4	E36	W/2	: To B42	G2	E158	B/1	: Fuse block (J/B)
B3	E37	BR/2	: ASCD brake switch	G3	E159	B/2	: Fuse block (J/B)
B3	E38	W/4	: Stop lamp switch	G3	E160	W/8	: Fuse block (J/B)
B3	E53	B/1	: Parking brake switch	C3	E167	GR/2	: Pedal adjusting motor
G3	E54	BR/6	: Front blower motor relay (without auto A/C)	-	-	-	-
