CHASIS Harness

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

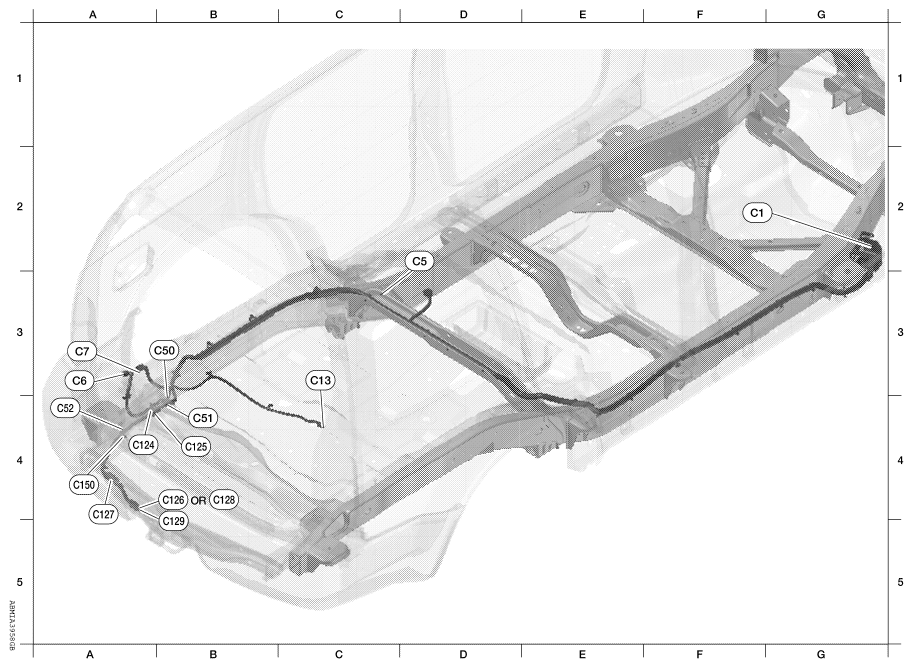

Fig 1: Identifying Chassis Harness And Connectors

Courtesy of NISSAN NORTH AMERICA, INC.

F2	C1	SMJ	: To E41	Trailer sub-harness
D2	C5	GR/5	: Fuel level sensor unit and fuel pump	A4	C124	GR/8	: To C50
A3	C6	B/2	: EVAP canister vent control valve	B4	C125	GR/8	: To C51
A3	C7	GR/3	: EVAP control system pressure sensor	B4	C126	B/7	: Trailer (trailer tow 7 pin)
C4	C13	GR/4	: Rear wheel sensor assembly	A4	C127	GR/2	: Rear bumper antenna
B3	C50	GR/8	: To C124	B4	C128	B/4	: Trailer (trailer tow 4 pin)
B4	C51	GR/8	: To C125	B5	C129	B/7	: Trailer receptacle
A4	C52	B/2	: To C150	A4	C150	B/2	: To C52
