Drain Hoses

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Removal

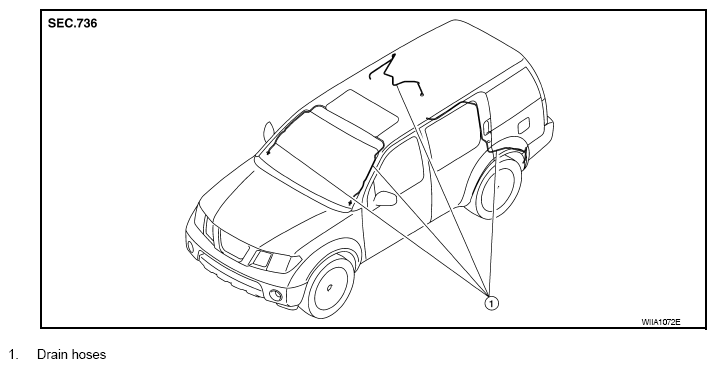

Fig 1: Identifying Sunroof System Drain Hoses

Courtesy of NISSAN NORTH AMERICA, INC.

Remove the headlining. Refer to "REMOVAL AND INSTALLATION ".

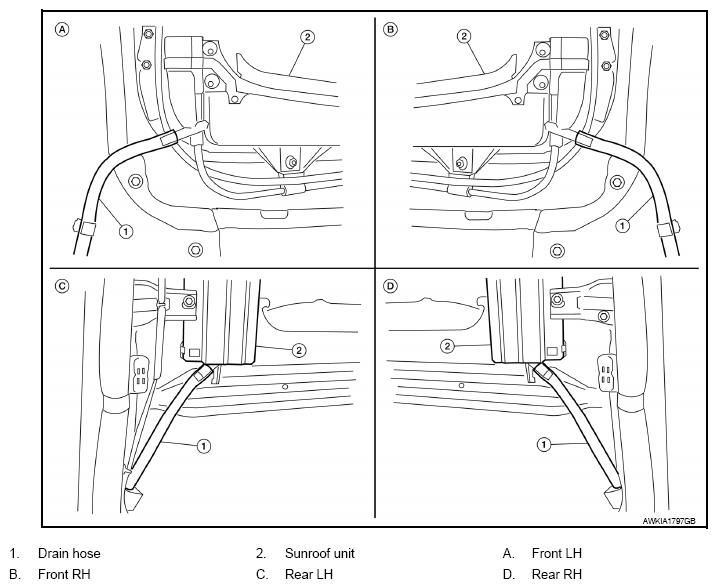

Fig 2: Identifying Sunroof Unit Drain Hose
Courtesy of NISSAN NORTH AMERICA, INC.
Visually check the drain hoses for proper connections, damage or deterioration.
Remove each drain hose and check visually for damage, cracks or deterioration.
Pour water through the drain hose to check for damage.
- If any damage is found, replace the drain hose.
Installation

Installation is in the reverse order of removal.
