PASSENGER SIDE: Diagnosis Procedure
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".
- CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
- Disconnect front power window motor RH.
- Turn ignition switch ON.

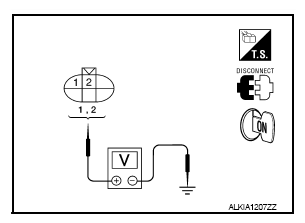

- Check voltage between front power window motor RH connector and ground.
Terminal Front power window motor RH condition Voltage (V) (Approx.) (+) (-) Front power window motor RH connector Terminal D104 2 Ground UP Battery voltage DOWN 0 1 UP 0 DOWN Battery voltage Courtesy of NISSAN NORTH AMERICA, INC.
Is the measurement value within the specification?
YES: GO TO 3
NO: GO TO 2
- CHECK HARNESS CONTINUITY
- Turn ignition switch OFF.
- Disconnect power window and door lock/unlock switch RH.

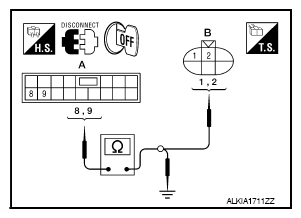

- Check continuity between power window and door lock/unlock switch RH connector (A) and front power window motor RH connector (B).
Power window and door lock/unlock switch RH connector Terminal Front power window motor RH connector Terminal Continuity D105 (A) 8 D104 (B) 2 Yes 9 1 - Check continuity between power window and door lock/unlock switch RH connector (A) and ground.
Power window and door lock/unlock switch RH connector Terminal Ground Continuity D105 (A) 8 No 9 Is the inspection result normal?
YES: Replace power window and door lock/unlock switch RH. Refer to "REMOVAL AND INSTALLATION ".
NO: Repair or replace harness.
- CHECK FRONT POWER WINDOW MOTOR RH
Check front power window motor RH.
Refer to "PASSENGER SIDE: COMPONENT INSPECTION ".
Is the inspection result normal?
YES: Check intermittent incident. Refer to "INTERMITTENT INCIDENT ".
NO: Replace front power window motor RH. Refer to "FRONT DOOR GLASS REGULATOR ".
