POWER WINDOW MAIN SWITCH: Diagnosis Procedure

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".

  1. CHECK POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between main power window and door lock/unlock switch connectors (A and B) and ground.
      Terminal Voltage (V) (Approx.)
      (+) (-)
      Main power window and door lock/unlock switch connector Terminal
      D7 (A) 10 Ground Battery voltage
      D8 (B) 19

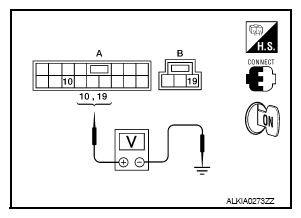

      Fig 1: Checking Voltage Between Main Power Window And Door Lock/Unlock Switch Connectors (A And B) And Ground
      G08168425Courtesy of NISSAN NORTH AMERICA, INC.

      Is the measurement value within the specification?

      YES: GO TO  3

      NO: GO TO 2

  2. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect BCM, main power window and door lock/unlock switch, power window and door lock/unlock switch RH, rear power window switch LH and rear power window switch RH.
    3. Check continuity between BCM connector (A) and main power window and door lock/unlock switch connectors (B and C).
      BCM connector Terminal Main power window and door lock/unlock switch connector Terminal Continuity
      M20 (A) 68 D7 (B) 10 Yes
      69 D8 (C) 19

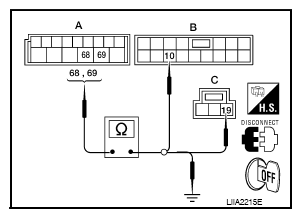

      Fig 2: Checking Continuity Between BCM Connector (A) And Ground
      G08168426Courtesy of NISSAN NORTH AMERICA, INC.
    4. Check continuity between BCM connector (A) and ground.
      BCM connector Terminal Ground Continuity
      M20 (A) 68 No
      69

      Is the inspection result normal?

      YES: GO TO  4

      NO: Repair or replace harness.

  3. CHECK GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect main power window and door lock/unlock switch.
    3. Check continuity between main power window and door lock/unlock switch connector and ground.
      Main power window and door lock/unlock switch connector Terminal Ground Continuity
      D8 17 Yes

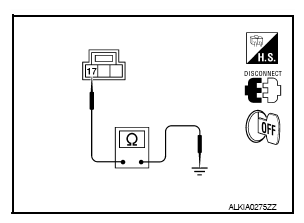

      Fig 3: Checking Continuity Between Main Power Window And Door Lock/Unlock Switch Connector And Ground
      G08168427Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: Check main power window and door lock/unlock switch output signal (rear power window switch LH) GO TO  5

      YES: Check main power window and door lock/unlock switch output signal (rear power window switch RH) GO TO  6

      YES: Check main power window and door lock/unlock switch output signal (front power window switch LH) GO TO  7

      NO: Repair or replace harness.

  4. CHECK BCM OUTPUT SIGNAL
    1. Connect BCM.
    2. Turn ignition switch ON.
    3. Check voltage between BCM connector and ground.
      Terminals Voltage (V) (Approx.)
      (+) (-)
      BCM connector Terminal
      M20 68 Ground Battery voltage
      69

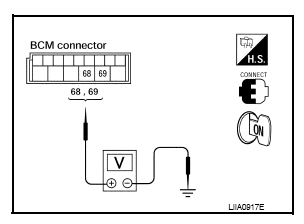

      Fig 4: Checking Voltage Between BCM Connector And Ground
      G08168428Courtesy of NISSAN NORTH AMERICA, INC.

      Is the measurement value within the specification?

      YES: Check intermittent incident. Refer to "INTERMITTENT INCIDENT ".

      NO: Replace BCM. Refer to "REMOVAL AND INSTALLATION ".

  5. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL (REAR POWER WINDOW SWITCH LH)
    1. Connect main power window and door lock/unlock switch.
    2. Turn ignition switch ON.
    3. Check voltage between main power window and door lock/unlock switch connector and ground.
      Terminal Window switch position (rear LH) Voltage (V) (Approx.)
      (+) (-)
      Main power window and door lock/unlock switch connector Terminal
      D7 1 Ground UP Battery voltage
      DOWN 0
      3 UP 0
      DOWN Battery voltage

      Is the measurement value within the specification?

      YES: Check intermittent incident. Refer to "INTERMITTENT INCIDENT ".

      NO: Replace main power window and door lock/unlock switch. Refer to "REMOVAL AND INSTALLATION ".

  6. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL (REAR POWER WINDOW SWITCH RH)
    1. Connect main power window and door lock/unlock switch.
    2. Turn ignition switch ON.
    3. Check voltage between main power window and door lock/unlock switch connector and ground.
      Terminal Window switch position (rear RH) Voltage (V) (Approx.)
      (+) (-)
      Main power window and door lock/unlock switch connector Terminal
      D7 7 Ground UP Battery voltage
      DOWN 0
      5 UP 0
      DOWN Battery voltage

      Is the measurement value within the specification?

      YES: Check intermittent incident. Refer to "INTERMITTENT INCIDENT ".

      NO: Replace main power window and door lock/unlock switch. Refer to "REMOVAL AND INSTALLATION ".

  7. CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH OUTPUT SIGNAL (FRONT POWER WINDOW SWITCH LH)
    1. Connect main power window and door lock/unlock switch.
    2. Turn ignition switch ON.
    3. Check voltage between main power window and door lock/unlock switch connector and ground.
      Terminal Window switch position (front LH) Voltage (V) (Approx.)
      (+) (-)
      Main power window and door lock/unlock switch connector Terminal
      D7 8 Ground UP Battery voltage
      DOWN 0
      11 UP 0
      DOWN Battery voltage

      Is the measurement value within the specification?

      YES: Check intermittent incident. Refer to "INTERMITTENT INCIDENT ".

      NO: Replace main power window and door lock/unlock switch. Refer to "REMOVAL AND INSTALLATION ".
