Initialization Procedure
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
After installing each component, perform the following procedure to reset the limit switch.
- Raise the glass to the top position.

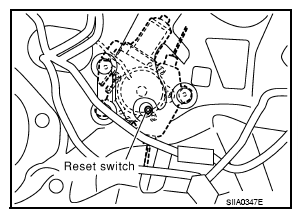

- While pressing and holding the reset switch, lower the glass to the bottom position.
- Release the reset switch. Verify that the reset switch returns to the original position, if not, pull the switch using suitable tool.
-
CAUTION: Do not operate the glass automatically to raise the glass to the top position.
Raise the glass to the top position.
