Glove Box Lamp

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove instrument lower panel RH and glove box. Refer to "REMOVAL AND INSTALLATION ".
Rotate glove box lamp socket (3) with bulb (1) counterclockwise, then pull away from lamp shield (2) on steering member to remove.

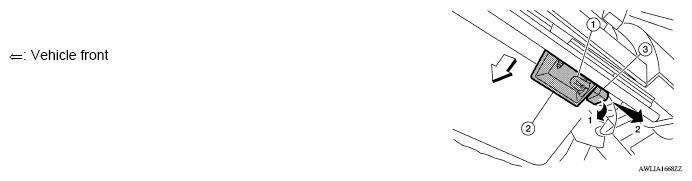

Fig 1: Removing Glove Box Lamp

Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

Remove glove box lamp.
Pull bulb (2) straight out from glove box lamp socket (1) to remove.

Glove box lamp bulb: 12V - 3.4W

Fig 2: Identifying Bulb And Glove Box Lamp Socket

Courtesy of NISSAN NORTH AMERICA, INC.
