Removal and Installation of Video Monitor: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the clips and remove the video monitor finisher from headlining.
  2. Press the release tabs and remove the cover.
  3. Remove the video monitor screws.
  4. Gently lower the assembly and disconnect the connector, then remove the video monitor from the headlining.

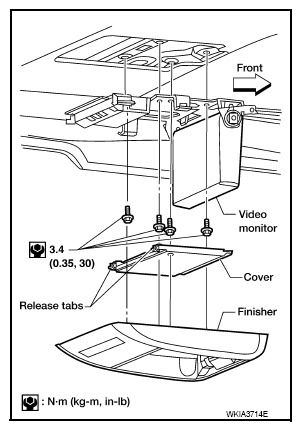

Fig 1: Identifying Video Monitor And Related Components
G08169777Courtesy of NISSAN NORTH AMERICA, INC.
