Removal and Installation of DVD Player: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Disconnect the DVD player connector (A).
  3. Remove the DVD player screws (B), then remove the DVD player (1).
  4. Remove the DVD player bracket screws and then remove DVD player brackets.

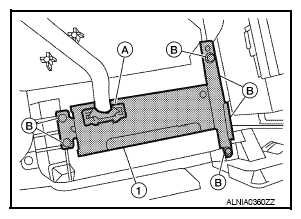

Fig 1: Identifying DVD Player With Connector And Screws
G08169776Courtesy of NISSAN NORTH AMERICA, INC.
