Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

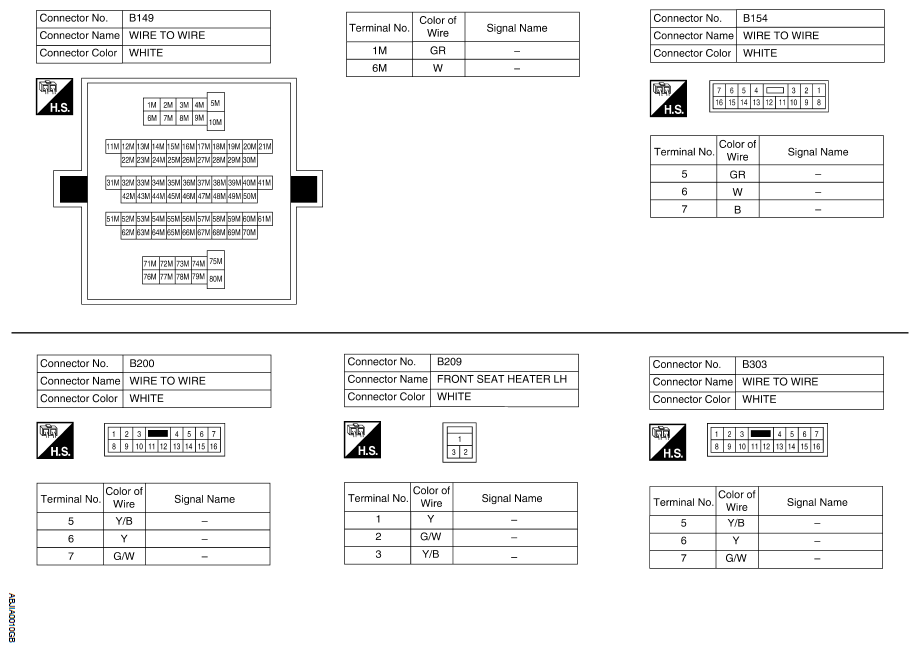

Fig 1: Identifying Heated Seat Connectors (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

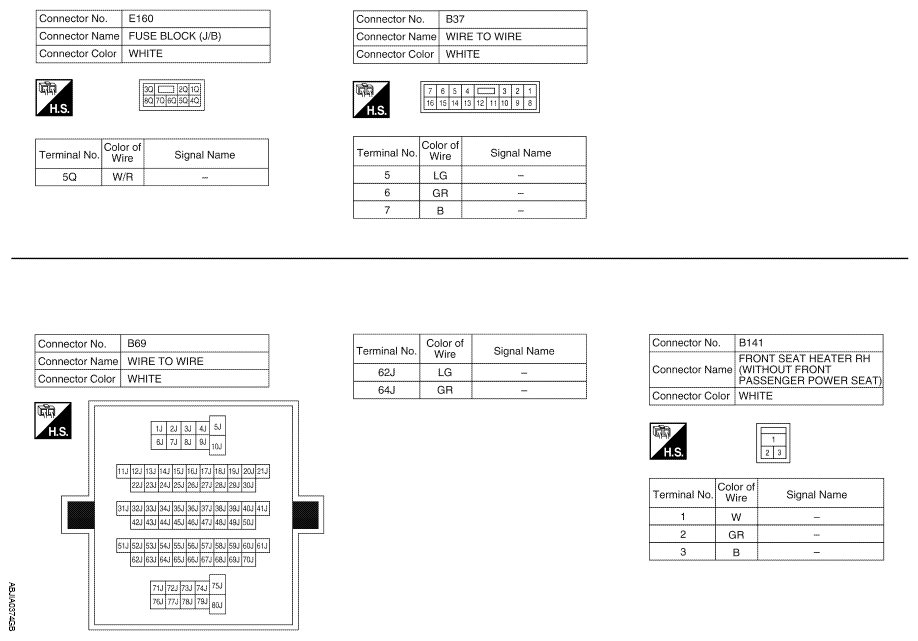

Fig 2: Identifying Heated Seat Connector (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

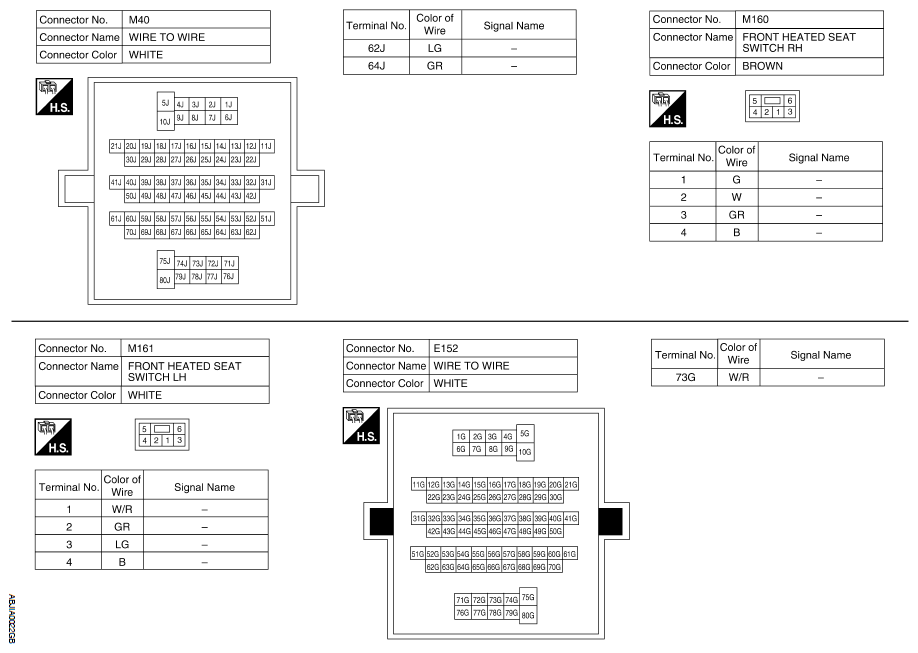

Fig 3: Identifying Heated Seat Connector (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

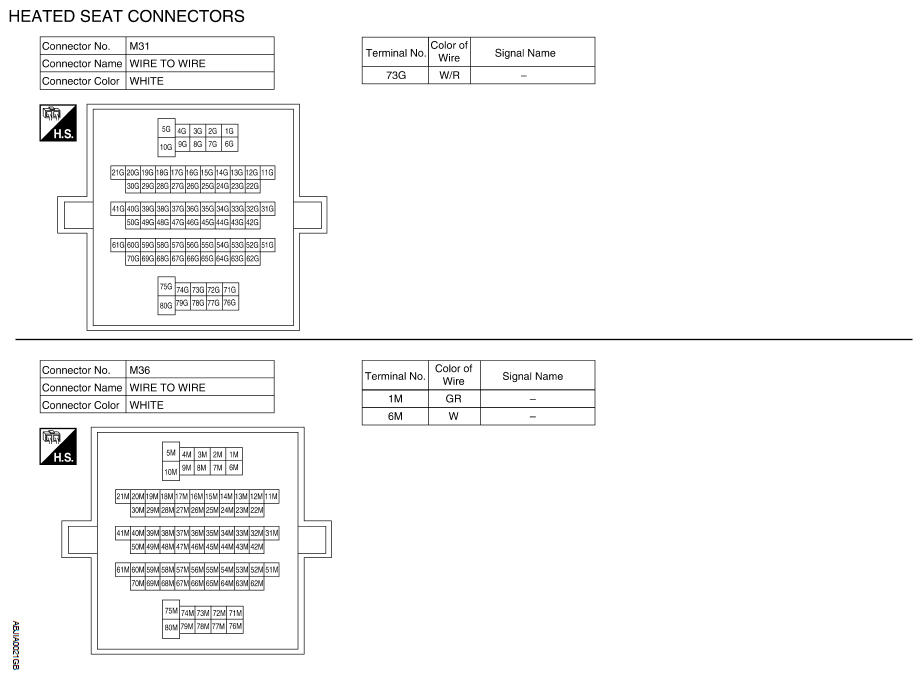

Fig 4: Identifying Heated Seat Connector (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

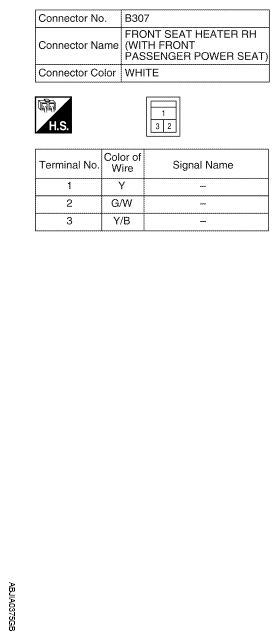

Fig 5: Identifying Heated Seat Connector (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
