Soft Seatback

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Removal

The seatback board is attached to the seat frame with the following:
- Two top tabs (A)
- Two side tabs (B)
- Two bottom clips (C) (must be replaced)
Move seat to forward position.

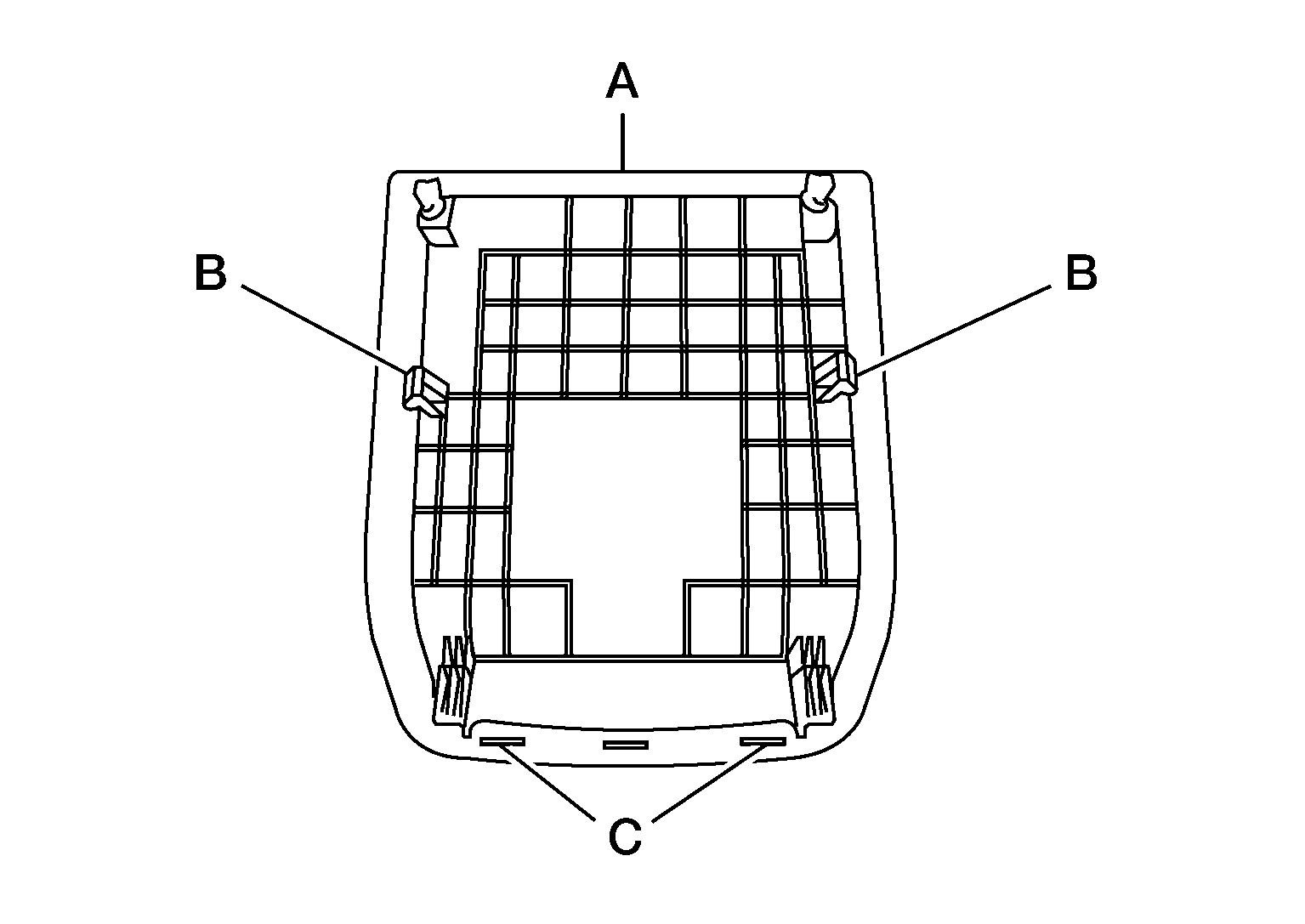

Fig 1: Identifying Seatback Board Top And Side Tabs With Bottom Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Hold the seatback board as shown in illustration below and pull the top of the seatback board away from the seat back frame.

Fig 2: Pulling Top Of Seatback Board Away From Seat Back Frame
Courtesy of NISSAN NORTH AMERICA, INC.
Pull the middle part of the seatback board to disengage the side tabs (A) from the seatback frame.
Pull the lower part of the seatback board to disengage the bottom clips from the seatback frame.

Fig 3: Pulling Middle Part Of Seatback Board From Seat Back Frame
Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.
