DTC Detection Logic

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
DTC DETECTION LOGIC (WITH CONSULT)

CONSULT name DTC DTC detecting condition Repair order
CONTROL UNIT B1XXX Air bag diagnosis sensor unit is malfunctioning.
  1. Visually check the wiring harness connection.
  2. Replace the harness if it has visible damage.
  3. Replace the air bag diagnosis sensor unit.
  4. Replace the related harness.

Without CONSULT

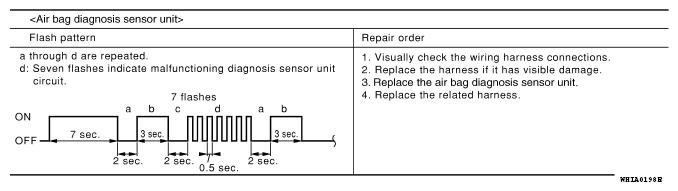

Fig 1: Air Bag Diagnosis Sensor Unit Flash Pattern
G06556807Courtesy of NISSAN NORTH AMERICA, INC.
