DTC Detection Logic

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
DTC DETECTION LOGIC (WITH CONSULT)

CONSULT name DTC DTC detecting condition Repair order
SATELLITE SENS RH [UNIT FAIL] B1113 RH side air bag satellite sensor has malfunctioned.
  1. Visually check the wiring harness connection.
  2. Replace the harness if it has visible damage.
  3. Replace the RH side air bag satellite sensor.
  4. Replace the air bag diagnosis sensor unit.
  5. Replace the related harness.
B1114
SATELLITE SENS RH [COMM FAIL] B1115 RH side air bag satellite sensor communication error.

Without CONSULT

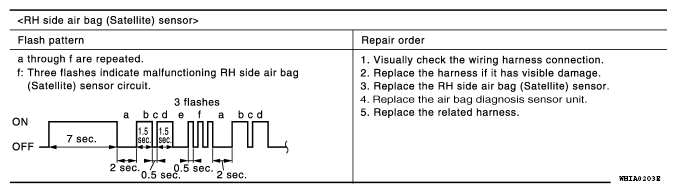

Fig 1: RH Side Air Bag Satellite Sensor Flash Pattern
G06556806Courtesy of NISSAN NORTH AMERICA, INC.
