DTC Detection Logic

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
DTC DETECTION LOGIC (WITH CONSULT)

CONSULT name DTC DTC detecting condition Repair order
CRASH ZONE SEN [UNIT FAIL] B1033 Crash zone sensor has malfunctioned.
  1. Visually check the wiring harness connection.
  2. Replace the harness if it has visible damage.
  3. Replace the crash zone sensor.
  4. Replace the air bag diagnosis sensor unit.
  5. Replace the related harness.
B1034
CRASH ZONE SEN [COMM FAIL] B1035 Crash zone sensor communication error.

Without CONSULT

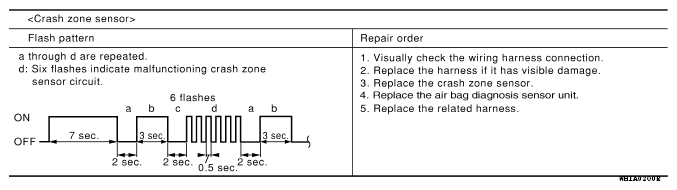

Fig 1: Crash Zone Sensor Flash Pattern
G06556804Courtesy of NISSAN NORTH AMERICA, INC.
