Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spare tire.
  2. Remove the rear stabilizer bar. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
  4. Remove the rear drive shafts from the rear final drive assembly and support them using suitable wire. Refer to "REMOVAL AND INSTALLATION ".

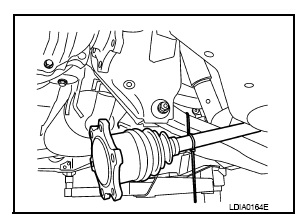

    Fig 1: Removing Rear Drive Shafts From Rear Final Drive Assembly Using Suitable Wire
    G08166657Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect the breather hose from the rear final drive assembly.
  6. Remove the rear wheel sensors. Refer to "UNIT REMOVAL AND INSTALLATION ".
  7. Place a suitable jack under the rear final drive assembly.
    CAUTION: Do not place the jack on the carrier cover.
  8. Remove the nuts and bolts and remove the rear final drive assembly.
    CAUTION: Secure rear final drive assembly to the jack while removing it.

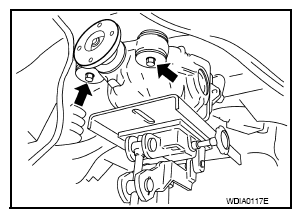

    Fig 2: Locating Bolts And Nuts Of Rear Final Drive Assembly
    G08166658Courtesy of NISSAN NORTH AMERICA, INC.
