Adjusting And Selecting Washers

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Side Gear Back Clearance

  1. Place the differential case straight up so that the side gear to be measured is upward.

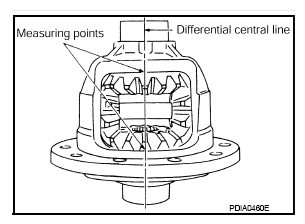

    Fig 1: Identifying Differential Center Line And Measuring Points
    G08166687Courtesy of NISSAN NORTH AMERICA, INC.
  2. Using feeler gauges, measure the clearance between the side gear back and differential case at three different points, while rotating the side gear. Average the three readings to calculate the clearance. (Measure the clearance of the other side as well.)

    Side gear back clearance: Refer to  "INSPECTION AND ADJUSTMENT "

    • If the side gear back clearance is outside of the specification, use a thicker or thinner side gear thrust washer to adjust. Refer to "INSPECTION AND ADJUSTMENT ".

      If the side gear back clearance is greater than specification: Use a thicker side gear thrust washer  .

      If the side gear back clearance is less than specification: Use a thinner side gear thrust washer  .

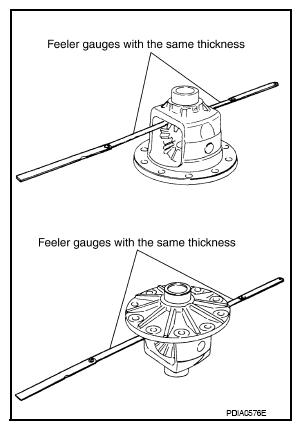

      Fig 2: Measuring Clearance Between Side Gear And Differential Case Using Feeler Gauge
      G08166688Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Insert feeler gauges with the same thickness on both sides to prevent side gear from tilting.
    • Each gear should rotate smoothly without excessive resistance during differential motion.
    • Select a side gear thrust washer for right and left individually.
    NOTE: Side gear back clearance is clearance between side gear and differential case for adjusting side gear backlash.

Side Bearing Preload Torque

  1. Apply differential gear oil to the side bearings, and install the differential case assembly with the side bearing outer races into the gear carrier.
    CAUTION: Do not reuse side bearing outer race when replacing side bearing inner race (replace as a set).

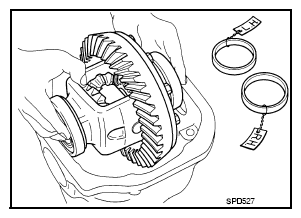

    Fig 3: Installing Differential Case Assembly Into Gear Carrier
    G08166689Courtesy of NISSAN NORTH AMERICA, INC.
  2. Insert the left and right original side bearing adjusting washers in place between side bearings and gear carrier.

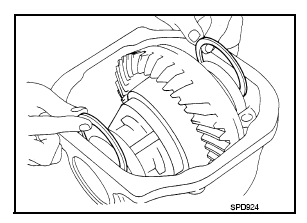

    Fig 4: Inserting Left And Right Side Bearing Adjusting Washers
    G08166690Courtesy of NISSAN NORTH AMERICA, INC.
  3. Align the matching mark on the side bearing cap with the matching mark on the gear carrier.
  4. Install the side bearing caps and tighten the side bearing cap bolts to the specified torque. Refer to "EXPLODED VIEW ".
  5. Turn the differential assembly several times to seat the side bearings.

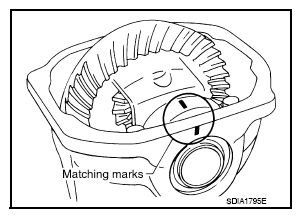

    Fig 5: Identifying Matching Mark On Bearing Cap And Gear Carrier
    G08166691Courtesy of NISSAN NORTH AMERICA, INC.
  6. To determine side bearing preload torque, measure the pulling force of the differential assembly at the drive gear bolt using Tool.

    Tool number: - (J-8129)

    Specification Refer to  "INSPECTION AND ADJUSTMENT ".

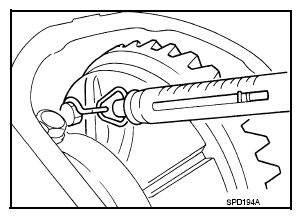

    Fig 6: Measuring Differential Assembly Pulling Force At Drive Gear Bolt Using Tool
    G08166692Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: If pulling force of the differential assembly at the drive gear bolt is within specification, side bearing preload torque will also be within specification. Refer to "INSPECTION AND ADJUSTMENT ".
  7. If the pulling force is outside the specification, use a thicker or thinner side bearing adjusting washer to adjust. Refer to "INSPECTION AND ADJUSTMENT ".

    If the pulling force is less than the specification: Use a thicker side bearing adjusting washer  .

    If the pulling force is greater than the specification: Use a thinner side bearing adjusting washer  .

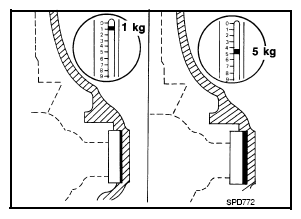

    Fig 7: Identifying Differential Assembly Pulling Force
    G08166693Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Select a side bearing adjusting washer for right and left individually.
  8. Record the total amount of washer thickness required for the correct side bearing preload torque.

Drive Pinion Height

  1. Make sure all parts are clean and that the bearings are well lubricated.
  2. Assemble the drive pinion bearings onto the Tool.

    Tool number: - (J-34309)

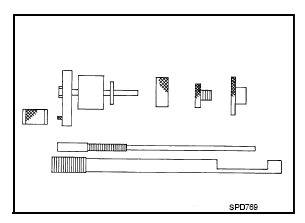

    Fig 8: Identifying Pinion Gear Bearings With Related Components
    G08166694Courtesy of NISSAN NORTH AMERICA, INC.
    • Drive pinion front bearing;  make sure the J-34309-3 drive pinion front bearing seat is secured tightly against the J-34309-2 gauge anvil. Then turn the J-34309-5 drive pinion front bearing pilot to secure the drive pinion bearing in its proper position.
    • Drive pinion rear bearing;  the J-34309-8 drive pinion rear bearing pilot is used to center the drive pinion rear bearing only. The J-34309-4 drive pinion rear bearing locking seat is used to lock the drive pinion rear bearing to the assembly.
    • Installation of J-34309-9 and J-34309-16;  place a suitable 2.5 mm (0.098 in) thick plain washer between J-34309-9 and J-34309-16. Both surfaces of J-34309-9 and J-34309-16 must be parallel with a clearance of 2.5 mm (0.098 in).

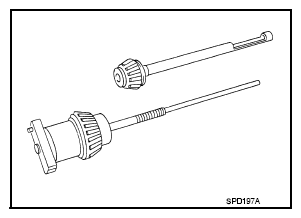

      Fig 9: Identifying Pinion Front And Rear Bearing
      G08166695Courtesy of NISSAN NORTH AMERICA, INC.
  3. Install the drive pinion rear bearing inner race into the gear carrier. Then insert the drive pinion height adjusting washer selector tool, J-34309-1, gauge screw assembly.

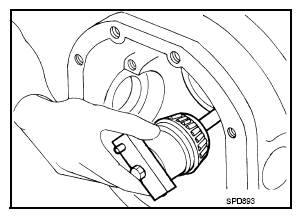

    Fig 10: Installing Pinion Rear Bearing Inner Race Into Gear Carrier
    G08166696Courtesy of NISSAN NORTH AMERICA, INC.
  4. Assemble the drive pinion front bearing inner race and the J-34309-2 gauge anvil. Assemble them together with the J-34309-1 gauge screw in the gear carrier. Make sure that the drive pinion height gauge plate, J-34309-16, will turn a full 360°. Tighten the two sections together by hand.

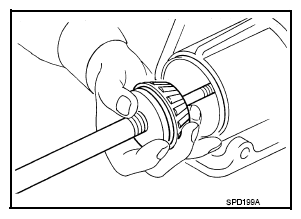

    Fig 11: Installing Drive Pinion Front Bearing Inner Race And Gauge Anvil
    G08166697Courtesy of NISSAN NORTH AMERICA, INC.
  5. Turn the assembly several times to seat the drive pinion bearings.

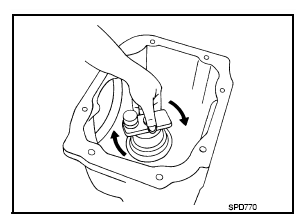

    Fig 12: Turning Assembly To Seat Bearings
    G08166698Courtesy of NISSAN NORTH AMERICA, INC.
  6. Measure the turning torque at the end of the J-34309-2 gauge anvil using Tool.

    Tool number: ST3127S000 (J-25765-A)

    Turning torque: 1.0 - 1.3 N.m (0.11 - 0.13 kg-m, 9 - 11 in-lb)

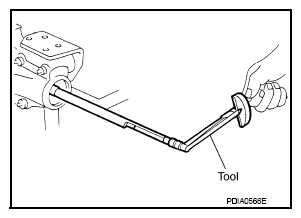

    Fig 13: Measuring Turning Torque Using Preload Gauge
    G08166699Courtesy of NISSAN NORTH AMERICA, INC.
  7. Place the J-34309-11 "R200A" drive pinion height adapter onto the gauge plate and tighten it by hand.
    CAUTION: Make sure all machined surfaces are clean.

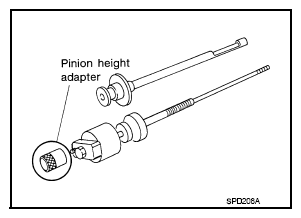

    Fig 14: Identifying Pinion Height Adapter
    G08166700Courtesy of NISSAN NORTH AMERICA, INC.
  8. Position the side bearing discs, Tool, and arbor firmly into the side bearing bores. Install the side bearing caps and tighten the side bearing cap bolts to the specified torque. Refer to "EXPLODED VIEW ".

    Tool number: - (J-25269-4)

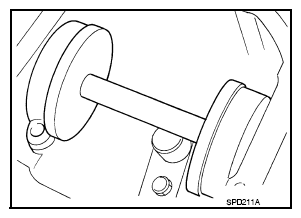

    Fig 15: Identifying Side Bearing Discs And Arbor
    G08166701Courtesy of NISSAN NORTH AMERICA, INC.
  9. Select the correct standard drive pinion height adjusting washer thickness. Select by using a standard gauge of 3 mm (0.12 in) and your J-34309-101 feeler gauge. Measure the distance between the J-34309-11 drive pinion height adapter, including the standard gauge and the arbor.

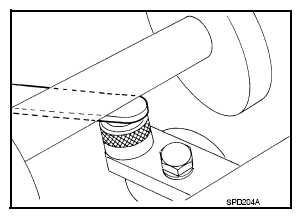

    Fig 16: Measuring Pinion Height Adjusting Washer Thickness Using Feeler Gauge
    G08166702Courtesy of NISSAN NORTH AMERICA, INC.
  10. Write down the exact measurement (the value of feeler gauge).
    Fig 17: Measuring Value Of Feeler Gauge
    G08166703Courtesy of NISSAN NORTH AMERICA, INC.
  11. Correct the drive pinion height adjusting washer size by referring to the drive pinion "head number".

    There are two numbers painted on the drive pinion. The first one refers to the drive pinion and drive gear as a matched set. This number should be the same as the number on the drive gear. The second number is the drive pinion "head number". It refers to the ideal drive pinion height from standard for quietest operation. Use the following chart to determine the correct drive pinion height adjusting washer  .

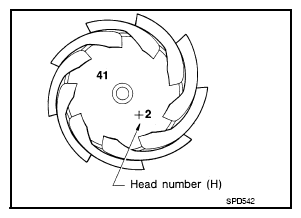

    Fig 18: Identifying Pinion Head Number (H)
    G08166704Courtesy of NISSAN NORTH AMERICA, INC.
    Head number Add or remove from the standard drive pinion height adjusting washer thickness measurement
    - 6 Add 0.06 mm (0.0024 in)
    - 5 Add 0.05 mm (0.0020 in)
    - 4 Add 0.04 mm (0.0016 in)
    - 3 Add 0.03 mm (0.0012 in)
    - 2 Add 0.02 mm (0.0008 in)
    - 1 Add 0.01 mm (0.0004 in)
    0 Use the selected washer thickness
    +1 Subtract 0.01 mm (0.0004 in)
    +2 Subtract 0.02 mm (0.0008 in)
    +3 Subtract 0.03 mm (0.0012 in)
    +4 Subtract 0.04 mm (0.0016 in)
    +5 Subtract 0.05 mm (0.0020 in)
    +6 Subtract 0.06 mm (0.0024 in)
  12. Select the correct drive pinion height adjusting washer. Refer to "INSPECTION AND ADJUSTMENT ".
  13. Remove the Tool from the gear carrier and disassemble to retrieve the drive pinion bearings.

    Tool number: - (J-34309)

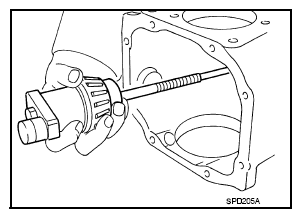

    Fig 19: Removing Drive Pinion Bearings
    G08166705Courtesy of NISSAN NORTH AMERICA, INC.
