Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel sensor. Refer to "UNIT REMOVAL AND INSTALLATION ".
Remove the drive shaft from the rear final drive assembly. Refer to "REMOVAL AND INSTALLATION ".
Remove the side flange using Tools.
Tool numbers (A): KV40104100 (-)

(B): ST36230000 (J-25840-A)

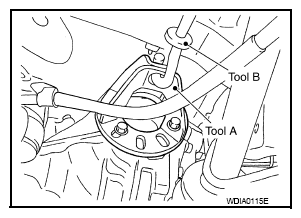

Fig 1: Removing Side Flange Using Tools
Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Circular clip installation position: Rear final drive side
Remove the side oil seal using suitable tool.
CAUTION: Do not to damage gear carrier.

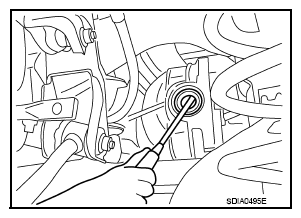

Fig 2: Removing Side Oil Seal Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
