Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the differential gear oil. Refer to "CHANGING DIFFERENTIAL GEAR OIL ".
  2. Remove the rear final drive assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the carrier cover bolts and separate the carrier cover from the gear carrier using Tool.

    Tool number: KV10111100 (J-37228)

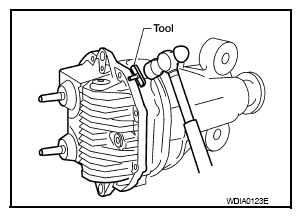

    Fig 1: Separating Carrier Cover From Gear Carrier Using Tool
    G08166653Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Do not damage the mating surface.
    • Do not insert flat-bladed screwdriver, this will damage the mating surface.
