Changing Differential Gear Oil: Filling

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the filler plug and gasket from the rear final drive assembly.
  2. Fill the rear final drive assembly with new differential gear oil until the level reaches the specified level near the filler plug hole.

    Differential gear oil grade and capacity: Refer to  "FOR USA AND CANADA: FLUIDS AND LUBRICANTS " (United States and Canada),  "FOR MEXICO: FLUIDS AND LUBRICANTS " (Mexico)  .

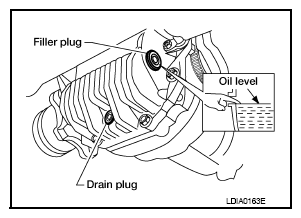

    Fig 1: Inspecting Oil Level Through Filler Plug
    G08166642Courtesy of NISSAN NORTH AMERICA, INC.
  3. Install the filler plug with a new gasket on it to the rear final drive assembly. Tighten to the specified torque. Refer to "DISASSEMBLY AND ASSEMBLY ".
    CAUTION: Do not reuse gasket.
