Inspection Flow

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

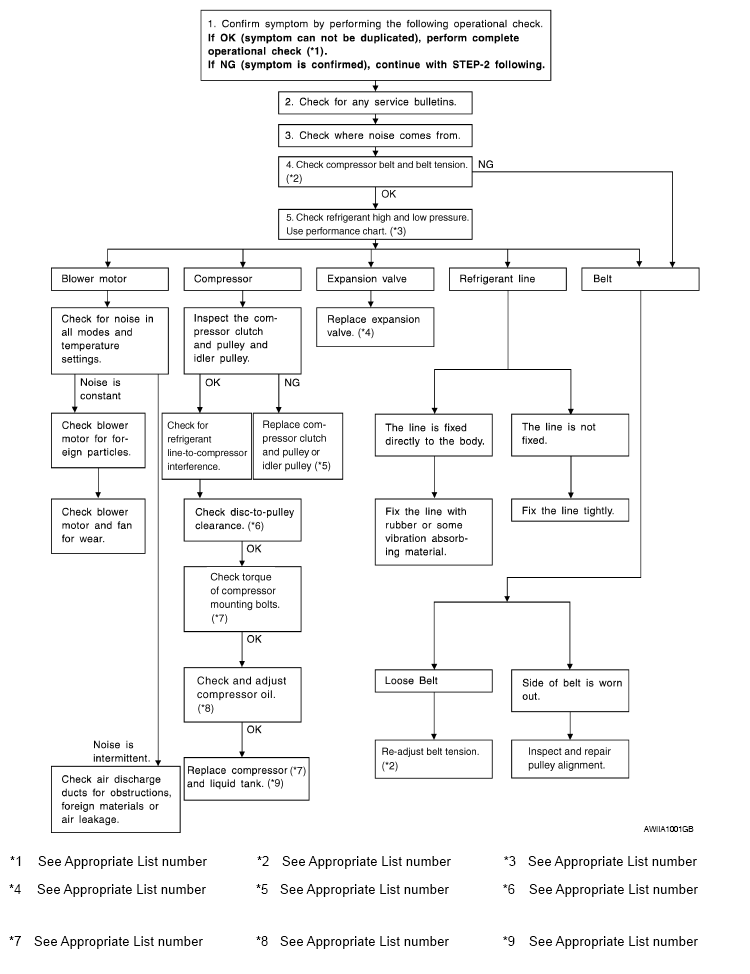

Fig 1: Noise Inspection Flow Chart
G08167715Courtesy of NISSAN NORTH AMERICA, INC.
  1. Refer to Operational Check .
  2. Refer to CHECKING DRIVE BELTS (VQ40DE) .
  3. Refer to Performance Chart .
  4. Refer to REMOVAL AND INSTALLATION FOR FRONT EXPANSION VALVE .
  5. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH .
  6. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH .
  7. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR .
  8. Refer to MAINTENANCE OF OIL QUANTITY IN COMPRESSOR .
  9. Refer to REMOVAL AND INSTALLATION FOR CONDENSER
