Diagnostic Work Flow

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

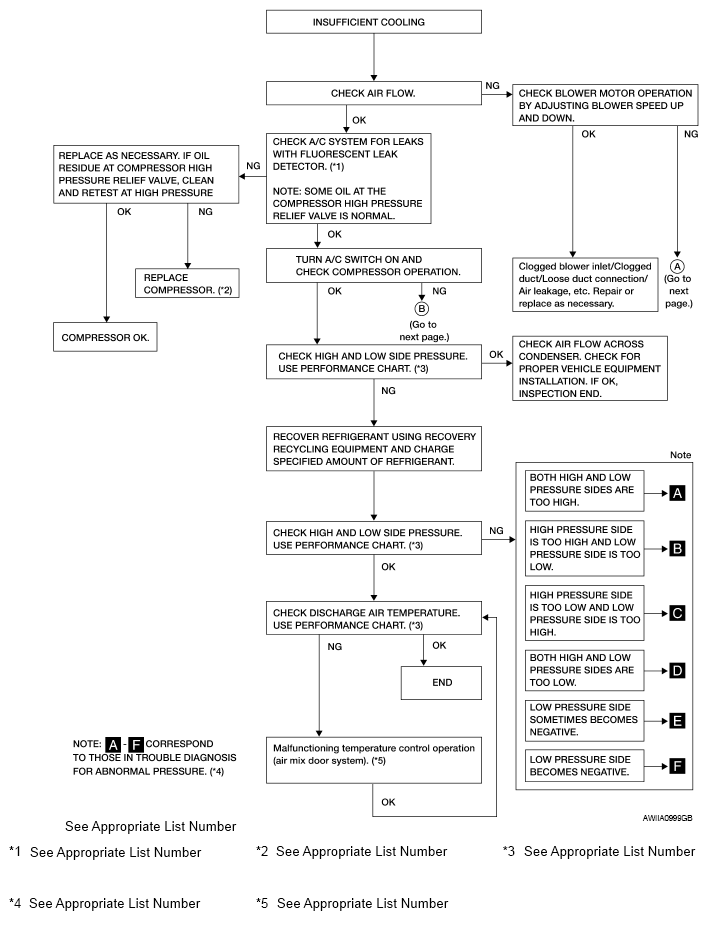

Fig 1: Insufficient Cooling Diagnostic Work Flow Chart (1 Of 2)
G08167707Courtesy of NISSAN NORTH AMERICA, INC.
  1. Refer to CHECKING SYSTEM FOR LEAKS USING THE FLUORESCENT DYE LEAK DETECTOR .
  2. Refer to REMOVAL AND INSTALLATION FOR CONDENSER .
  3. Refer to Performance Chart .
  4. Refer to Trouble Diagnoses for Abnormal Pressure .
  5. Refer to Air Mix Door Motor Diagnosis Procedure .

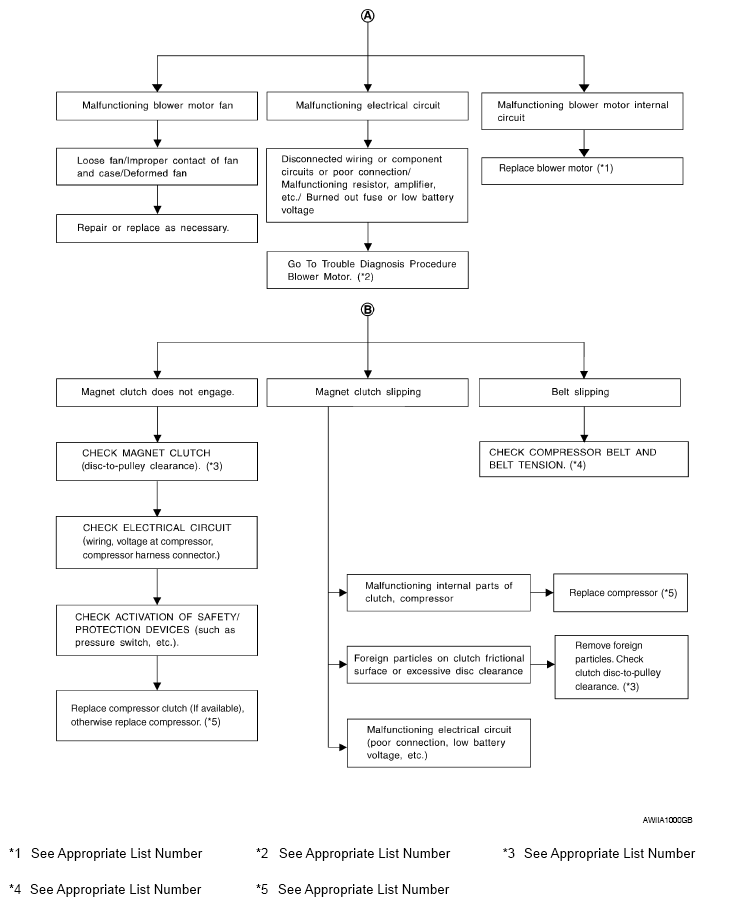

Fig 2: Insufficient Cooling Diagnostic Work Flow Chart (2 Of 2)
G08167708Courtesy of NISSAN NORTH AMERICA, INC.
  1. Refer to REMOVAL AND INSTALLATION .
  2. Refer to Front Blower Motor Diagnosis Procedure .
  3. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR CLUTCH .
  4. Refer to CHECKING DRIVE BELTS (VQ40DE) .
  5. Refer to REMOVAL AND INSTALLATION FOR COMPRESSOR
