Diagnostic Procedure For A/C System

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: A/C system does not come on.

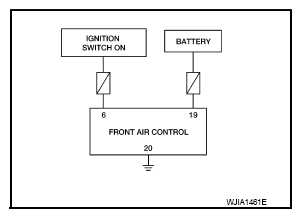

Fig 1: Front Air Control Connection Circuit With Ignition Switch And Battery

Courtesy of NISSAN NORTH AMERICA, INC.

CHECK POWER SUPPLY CIRCUITS FOR FRONT AIR CONTROL

Turn ignition switch OFF.
Disconnect front air control connector.
Turn ignition switch ON.

Check voltage between front air control harness connector M52 terminals 6 and 19, and ground.

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Front air control connector	Terminal No.	(-)	OFF	ACC	ON
M52	6	Ground	Approx. 0V	Approx. 0V	Battery voltage
M52	19	Ground	Battery voltage	Battery voltage	Battery voltage

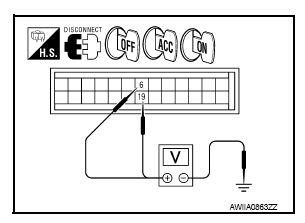

Fig 2: Checking Voltage Between Front Air Control Connector M52 Terminals 6, 19 And Ground

Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES: GO TO 2.

NO: Check 10A fuses [Nos. 8 and 19, located in the fuse block (J/B)]. Refer to "TERMINAL ARRANGEMENT ".

If fuses are OK, check harness for open circuit. Repair or replace as necessary.
If fuses are NG, replace fuse and check harness for short circuit. Repair or replace as necessary.

CHECK GROUND CIRCUIT FOR FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Check continuity between front air control harness connector M52 terminal 20 and ground.
  20 - Ground: Continuity should exist .

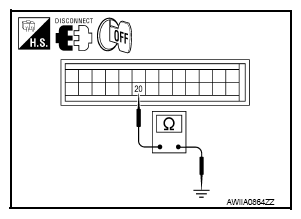

  Fig 3: Checking Continuity Between Front Air Control Connector M52 Terminal 20 And Ground
  Courtesy of NISSAN NORTH AMERICA, INC.

  Is the inspection result normal?

  YES: Replace front air control. Refer to "REMOVAL AND INSTALLATION ".

  NO: Repair harness or connector.
