Component Inspection
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Intake Sensor

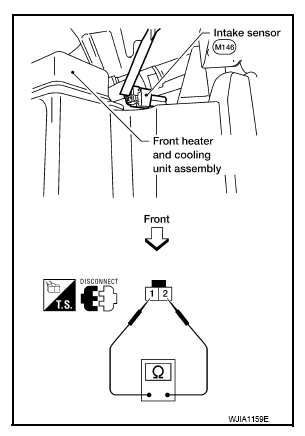

After disconnecting intake sensor connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table below.
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| -15 (5) | 209.0 |
| -10 (14) | 160.0 |
| -5 (23) | 123.0 |
| 0 (32) | 95.8 |
| 5 (41) | 74.9 |
| 10 (50) | 58.9 |
| 15 (59) | 46.7 |
| 20 (68) | 37.3 |
| 25 (77) | 30.0 |
| 30 (86) | 24.2 |
| 35 (95) | 19.7 |
| 40 (104) | 16.1 |
| 45 (113) | 13.2 |
If NG, replace intake sensor. Refer to "REMOVAL AND INSTALLATION ".
