System Description: Notes
WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Component Parts
Blower speed control system components are:
- Front air control
- Front blower motor resistor
- Front blower motor
- Front blower relay

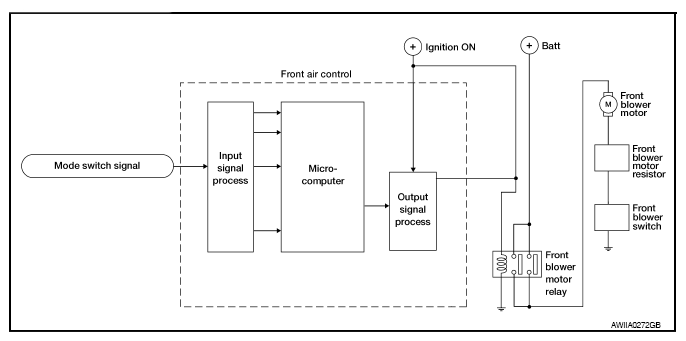

System Operation
Courtesy of NISSAN NORTH AMERICA, INC.
