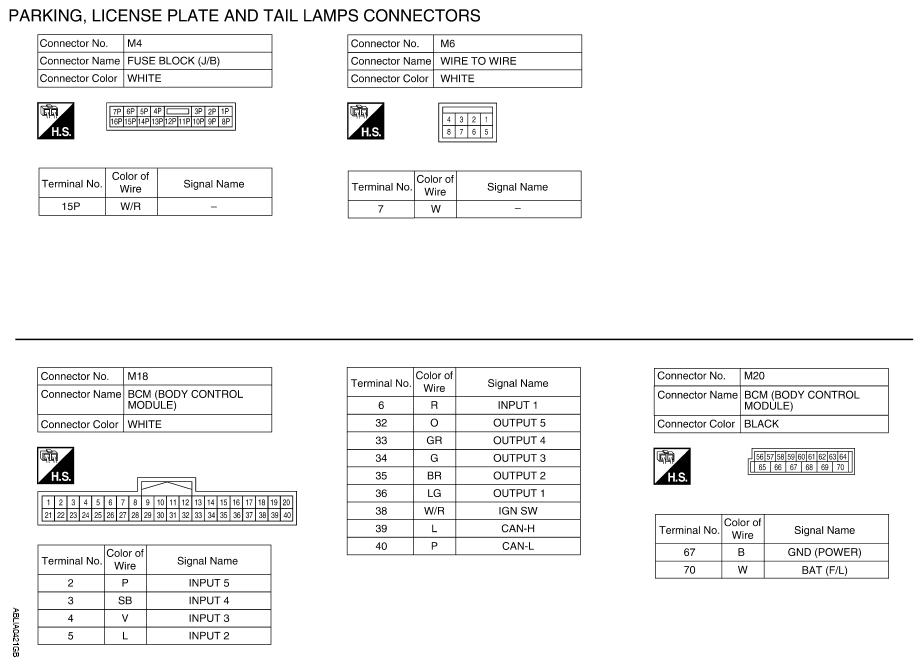

Fig 1: Identifying Parking, License Plate And Tail Lamps Connectors (1 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

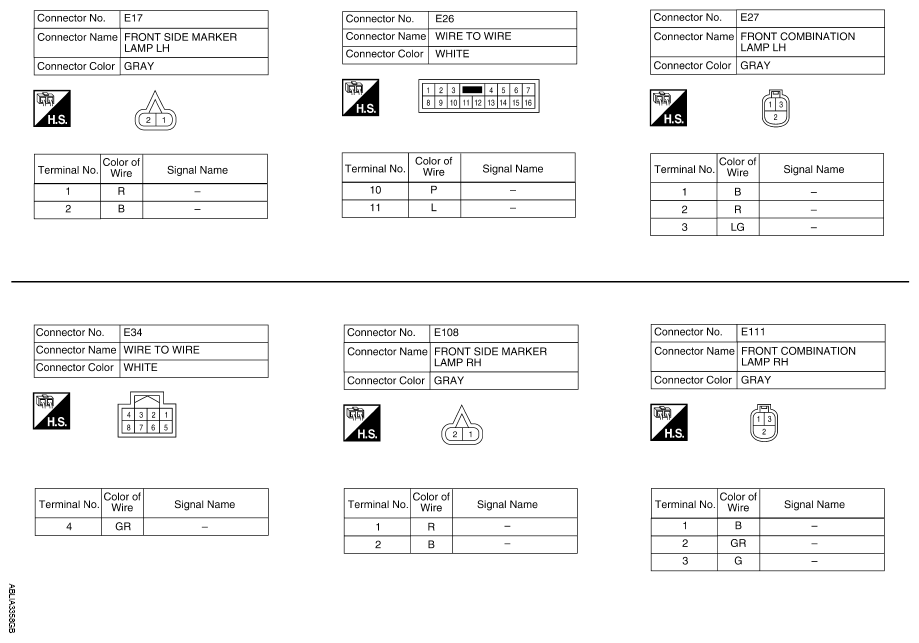

Fig 2: Identifying Parking, License Plate And Tail Lamps Connectors (2 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

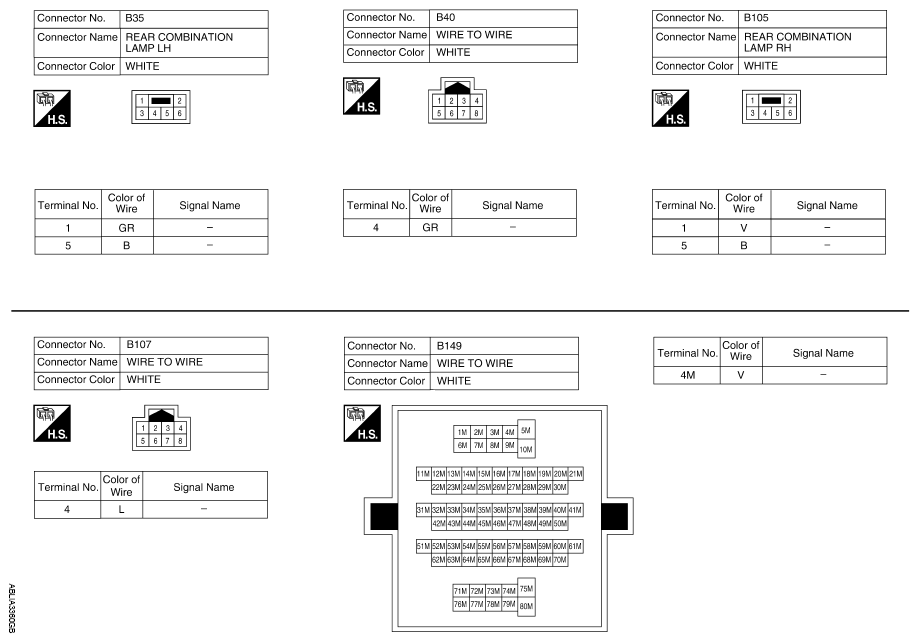

Fig 3: Identifying Parking, License Plate And Tail Lamps Connectors (3 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

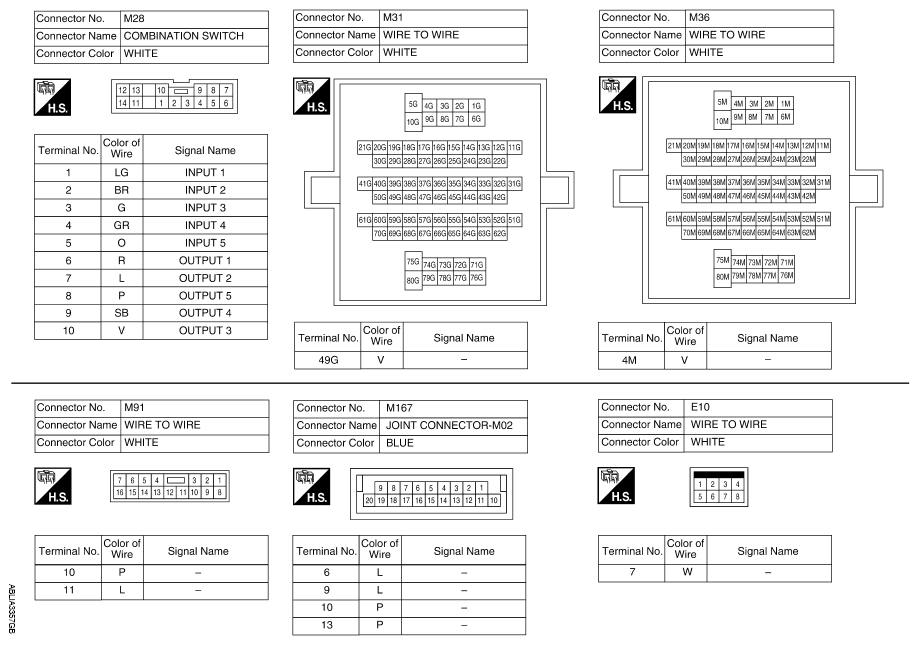

Fig 4: Identifying Parking, License Plate And Tail Lamps Connectors (4 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

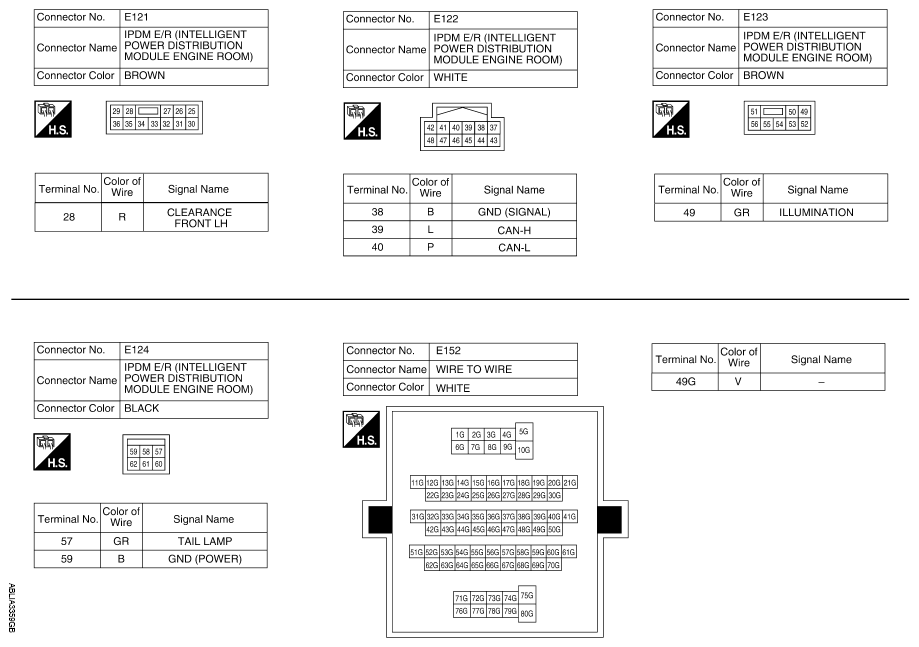

Fig 5: Identifying Parking, License Plate And Tail Lamps Connectors (5 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

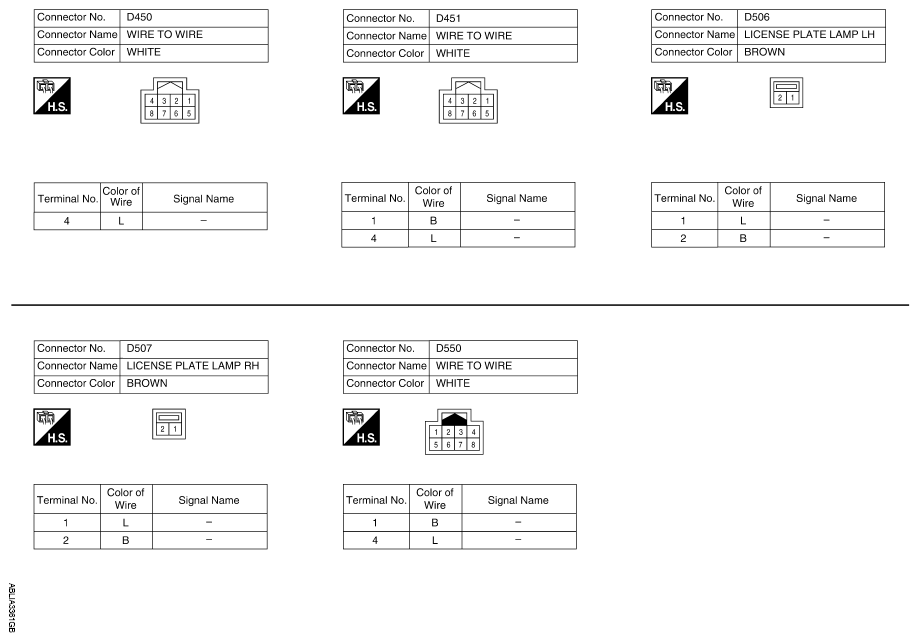

Fig 6: Identifying Parking, License Plate And Tail Lamps Connectors (6 Of 6)
