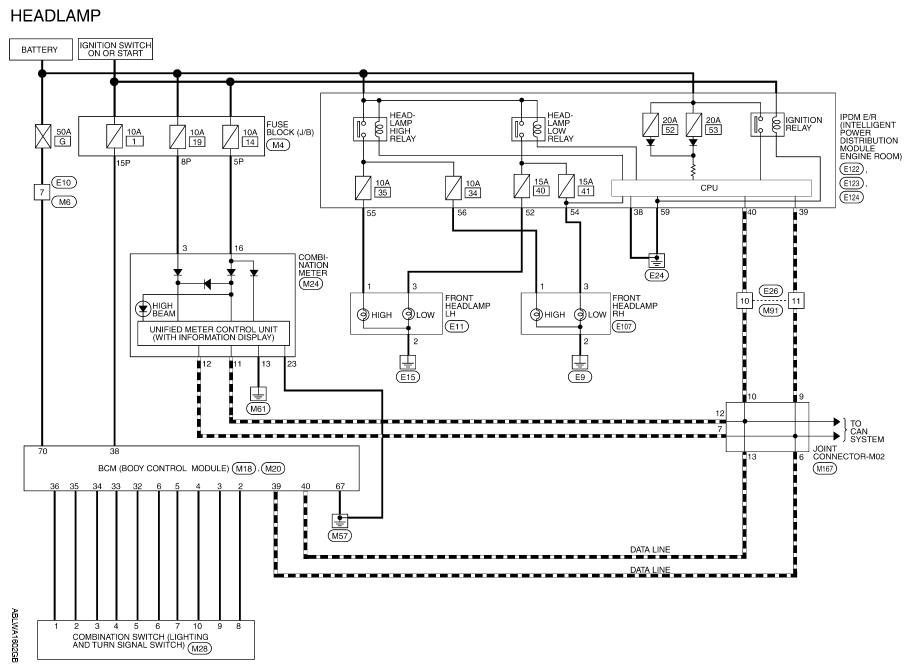

Section 2250 (Exterior Lighting System): Wiring Diagram: Headlamp: Wiring Diagram

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
