Bulb Replacement: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear combination lamp bolts.
  2. Pull rear combination lamp to remove from the vehicle.
  3. Turn bulb socket counterclockwise and unlock it.
  4. Remove bulb.

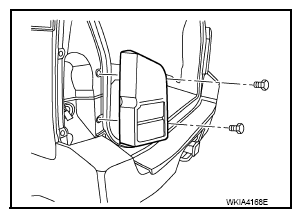

    Fig 1: Identifying Rear Combination Lamp Bolts
    G08168805Courtesy of NISSAN NORTH AMERICA, INC.
