Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel (LH). Refer to "EXPLODED VIEW ".
  2. Remove steering column cover.
  3. Disconnect the lighting and turn signal switch connector.
  4. While pressing tabs, pull lighting and turn signal switch toward driver door and release from the steering column.

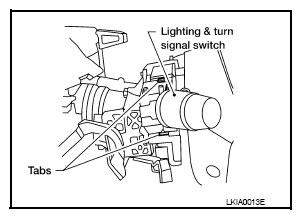

    Fig 1: Identifying Lighting And Turn Signal Switch With Tab
    G08168803Courtesy of NISSAN NORTH AMERICA, INC.
