HEADLAMP: Aiming Adjustment: Notes

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

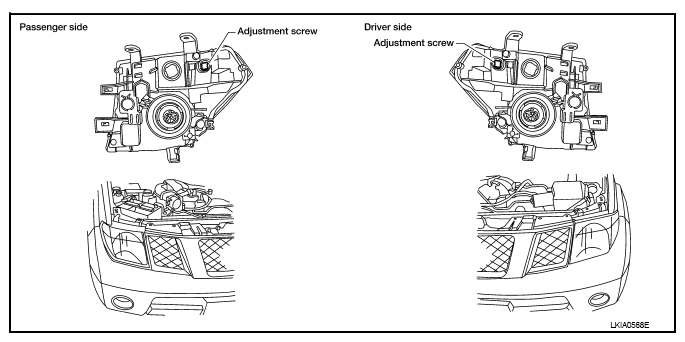

Fig 1: Identifying Headlamp Adjustment Screws (Passenger And Driver Side)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

For headlamp aiming details, refer to the regulations in your area.
If vehicle front body has been repaired and/or the front combination lamp assembly has been removed or replaced, check headlamp aiming.
Before performing aiming adjustment, check the following:

Confirm headlamp aiming switch is set to "0" (zero) position.
Ensure all tires are inflated to correct pressure.
Place vehicle and screen on level surface.
Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position). Coolant and engine oil filled to correct level, and fuel tank full.
Confirm spare tire, jack and tools are properly stowed.
Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.
Use adjusting screw to perform aiming adjustment
