Wiring Diagram - Without HomeLink® Universal Transceiver

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

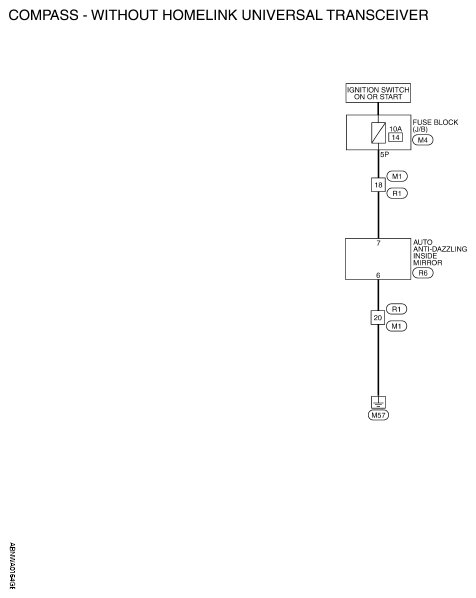

Fig 1: Compass (Without Homelink Universal Transceiver) Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
