Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Follow the "General Precautions" before working on the fuel system. Refer to "GENERAL PRECAUTION ".
  1. Remove the fuel filler cap to release the pressure from inside the fuel tank.
  2. Remove the LH rear wheel and tire. Refer to "ADJUSTMENT ".
  3. Check the fuel level on level gauge. If the fuel gauge indicates more than the level as shown (full or almost full), drain the fuel from the fuel tank until the fuel gauge indicates the level as shown, or less.
    NOTE: Fuel may be spilled through the fuel tank filler hose fitting when lowering the fuel tank if the level is above "1/2".
    • As a guide, the fuel level reaches the fuel gauge position as shown, or less, when approximately 43 l  (11 3/8 US gal, 9 1/2 Imp gal) of fuel is drained from a full fuel tank.
    • If the fuel pump does not operate, use the following procedure to drain the fuel to the specified level.

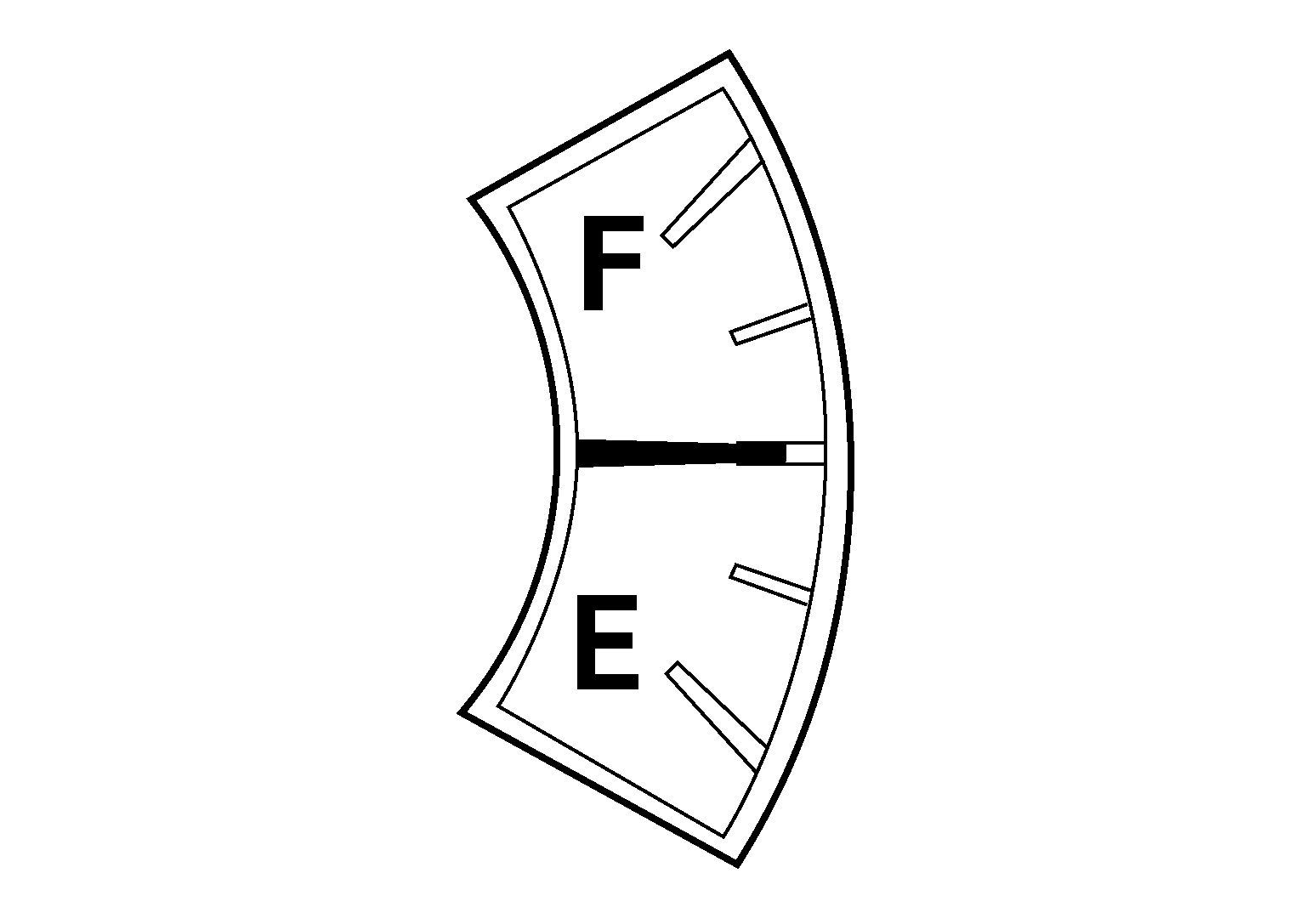

    Fig 1: Checking Fuel Level On Fuel Gauge
    G05710407Courtesy of NISSAN NORTH AMERICA, INC.
    1. Insert a suitable hose of less than 15 mm (0.59 in) diameter into the fuel filler pipe through the fuel filler opening to drain the fuel from fuel filler pipe.
    2. Disconnect the fuel filler hose from the fuel filler pipe.
    3. Insert a suitable hose into the fuel tank through the fuel filler hose to drain the fuel from the fuel tank.
  4. Release the fuel pressure from the fuel lines. Refer to "FUEL PRESSURE CHECK " (VQ40DE), "FUEL PRESSURE CHECK " (VK56DE).
  5. Disconnect the battery negative terminal.
  6. Disconnect the lower fuel filler hose from the fuel tank, the EVAP hose, and the vent pipe quick connector.
    • Disconnect the fuel feed hose from the molded clip in the side of the fuel tank.

    Disconnect the quick connector as follows:

    • Hold the sides of the connector, push in the tabs and pull out the tube.
    • If the connector and the tube are stuck together, push and pull several times until they start to move. Then disconnect them by pulling.
    CAUTION:
    • The quick connector can be disconnected when the tabs are completely depressed. Do not twist the quick connector more than necessary.
    • Do not use any tools to disconnect the quick connector.
    • Keep the resin tube away from heat. Be especially careful when welding near the tube.
    • Prevent any acid liquids such as battery electrolyte, from getting on the resin tube.
    • Do not bend or twist the resin tube during connection.
    • Do not remove the remaining retainer on the hard tube (or the equivalent) except when the resin tube or the retainer is replaced.
    • When the resin tube or hard tube, or the equivalent, is replaced, also replace the retainer with a new one (semitransparent colored retainer).
      Fig 2: Identifying Position For Connecting Fuel Tube Quick Connector
      G04900832Courtesy of NISSAN NORTH AMERICA, INC.
    • To keep the quick connector clean and to avoid damage and contamination from foreign materials, cover the quick connector with plastic bags or suitable material as shown in illustration below.
    Fig 3: Securing Quick Connector Using Plastic Bags
    G04875526Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the fuel tank shield (if equipped).
  8. Remove the propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION " (2S1330), "UNIT REMOVAL AND INSTALLATION " (2S1350).
  9. Support the fuel tank using a suitable lift jack.
  10. Remove the three fuel tank strap bolts while supporting the fuel tank with a suitable lift jack.
    Fig 4: Supporting Fuel Tank Using Suitable Lift Jack
    G04897463Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove the fuel tank straps and slowly lower the fuel tank to access the top of the fuel level sensor, fuel filter and fuel pump assembly.
    CAUTION: Do not lower the fuel tank too far to prevent damage to the fuel feed hose and the fuel level sensor, fuel filter and fuel pump assembly connector.
  12. Disconnect the fuel level sensor, fuel filter, and fuel pump assembly electrical connector, and the fuel feed hose.
    Fig 5: Identifying Fuel Level Sensor, Fuel Filter, Fuel Pump Assembly Electrical Connector And Fuel Feed Hose
    G04897464Courtesy of NISSAN NORTH AMERICA, INC.

    Disconnect the quick connector as follows:

    • Hold the sides of the connector, push in the tabs and pull out the tube.
    • If the connector and the tube are stuck together, push and pull several times until they start to move. Then disconnect them by pulling.
      Fig 6: Pulling Quick Connector Tube
      G04875524Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • The quick connector can be disconnected when the tabs are completely depressed. Do not twist the quick connector more than necessary.
    • Do not use any tools to disconnect the quick connector.
    • Keep the resin tube away from heat. Be especially careful when welding near the tube.
    • Prevent any acid liquids such as battery electrolyte, from getting on the resin tube.
    • Do not bend or twist the resin tube during connection.
    • Do not remove the remaining retainer on the hard tube (or the equivalent) except when the resin tube or the retainer is replaced.
    • When the resin tube or hard tube, or the equivalent, is replaced, also replace the retainer with a new one (semitransparent colored retainer).
      Fig 7: Identifying Position For Connecting Fuel Tube Quick Connector
      G04900832Courtesy of NISSAN NORTH AMERICA, INC.
    • To keep the quick connector clean and to avoid damage and contamination from foreign materials, cover the quick connector with plastic bags or suitable material as shown in illustration below.
    Fig 8: Securing Quick Connector Using Plastic Bags
    G04875526Courtesy of NISSAN NORTH AMERICA, INC.
  13. Lower the fuel tank using a suitable lift jack and remove the fuel tank.
  14. Disconnect the EVAP hose from the fuel pump and remove the EVAP hose from the molded clip in the top of the fuel tank.
  15. Remove the lock ring using Tool.

    Tool number: - (J-45722)

  16. Remove the fuel level sensor, fuel filter, and fuel pump assembly. Remove and discard the O-ring.
    CAUTION:
    • Do not bend the float arm during removal.
    • Avoid impacts such as dropping when handling the components.
    • Discard the O-ring, do not reuse the O-ring.
    Fig 9: Removing Lock Ring Using Tool
    G04912251Courtesy of NISSAN NORTH AMERICA, INC.
