Cross-Sectional View

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

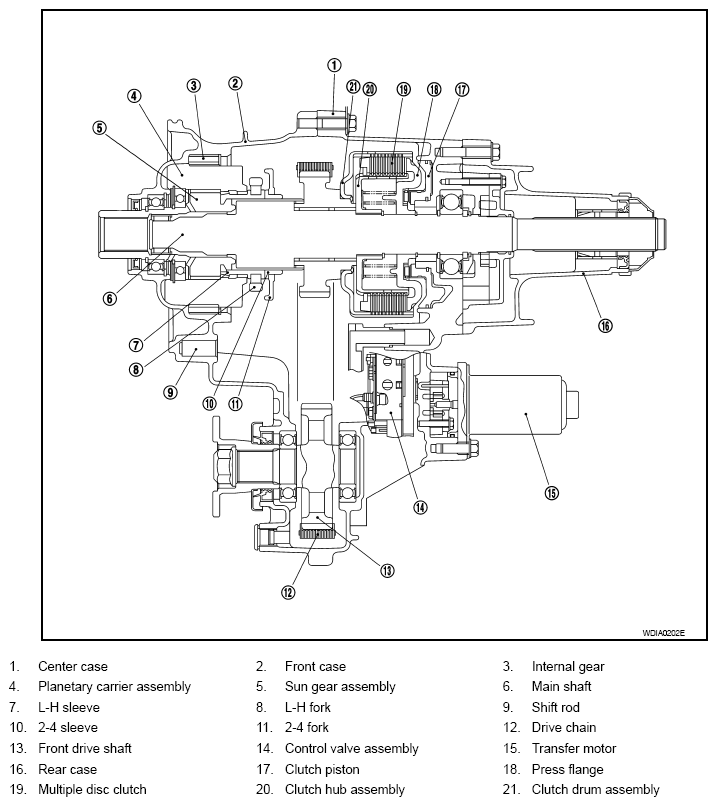

Fig 1: Cross-Sectional View Of Power Transfer Assembly
G08165805Courtesy of NISSAN NORTH AMERICA, INC.
