Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the transfer motor connector.
  2. Remove the transfer motor air breather hose from the transfer motor. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the transfer motor bolts.
  4. Remove the transfer motor.

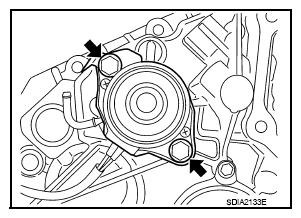

    Fig 1: Locating Transfer Motor Bolts
    G08165988Courtesy of NISSAN NORTH AMERICA, INC.
