Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set transfer state as 2WD when 4WD shift switch is at 2WD, or as AUTO when 4WD shift switch is at AUTO.
    CAUTION: When removing transfer control unit, transfer state must be at 2WD or AUTO.
  2. Turn the ignition switch OFF and disconnect negative battery terminal. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  4. Disconnect the two transfer control unit connectors.
  5. Remove the transfer control unit bolts.
  6. Remove the transfer control unit.

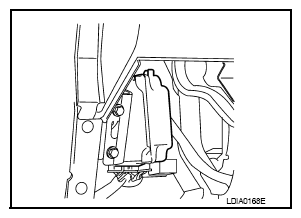

    Fig 1: Identifying Transfer Control Unit
    G08165954Courtesy of NISSAN NORTH AMERICA, INC.
