Removal and Installation: Removal

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
  2. Remove the companion flange. Refer to "DISASSEMBLY AND ASSEMBLY ".
  3. Remove the transfer control device from the transfer assembly. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove the side oil seal using suitable tool.
    CAUTION: Do not damage shift cross.

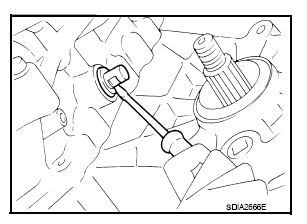

    Fig 1: Removing Side Oil Seal Using Suitable Tool
    G08165967Courtesy of NISSAN NORTH AMERICA, INC.
