Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install the new side oil seal until it is flush with the end face of case using Tool.
Tool number: ST22360002 (J-25679-01)
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.

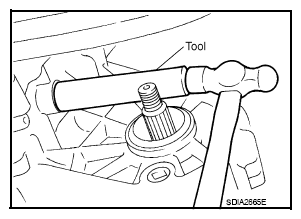

  Fig 1: Installing Side Oil Seal Using Tool
  Courtesy of NISSAN NORTH AMERICA, INC.
Install the transfer control device to the transfer assembly. Refer to "REMOVAL AND INSTALLATION ".
Install the companion flange. Refer to "DISASSEMBLY AND ASSEMBLY ".
Install the front propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION ".
Check for fluid leaks and fluid level. Refer to "INSPECTION ".
