Removal and Installation: Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install the new rear oil seal until it is flush with the end face of the rear case using Tool.
Tool number: ST30720000 (J-25405)
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.

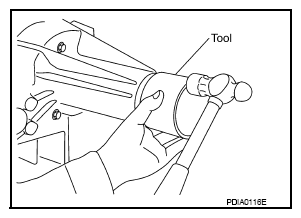

  Fig 1: Installing Rear Oil Seal Of Rear Case Using Tool
  Courtesy of NISSAN NORTH AMERICA, INC.
Apply petroleum jelly to the circumference of the new dust cover. Position the new dust cover as shown.
CAUTION:
- Do not reuse dust cover.
- Position the protrusions at the position shown.

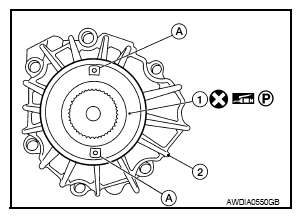

- 1: Dust cover
- 2: Rear case assembly
- A: Protrusions

  Fig 2: Identifying Protrusions, Rear Case Assembly And Dust Cover
  Courtesy of NISSAN NORTH AMERICA, INC.
Install the new dust cover to the rear case using Tool.
Tool number: KV40105310 (-)

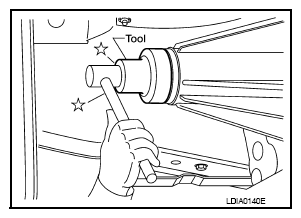

Fig 3: Installing Dust Cover To Rear Case Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Do not reuse dust cover.
- Apply petroleum jelly to dust cover.
Install the rear propeller shaft. Refer to "UNIT REMOVAL AND INSTALLATION " (2S1330), "UNIT REMOVAL AND INSTALLATION " (2S1350).
Check for fluid leaks and fluid level. Refer to TRANSFER FLUID .
