Clutch Pressure Solenoid

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
  2. Disconnect transfer terminal cord assembly harness connector.
  3. Check resistance between transfer terminal cord assembly terminals 6 and 19.

    6 - 19: Approx. 3.0 - 3.4 Ω

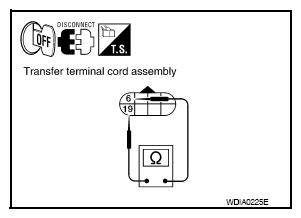

    Fig 1: Checking Resistance Between Transfer Terminal Cord Assembly Terminals 6 And 19
    G08165862Courtesy of NISSAN NORTH AMERICA, INC.
  4. If the inspection results are abnormal replace clutch pressure solenoid. Refer to "COMPONENT PARTS LOCATION ".
