Diagnosis Procedure
Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".
- CHECK 4WD SHIFT SWITCH SIGNAL
With CONSULT
- Turn ignition switch "ON". (Do not start engine.)
- Select "DATA MONITOR" mode for "ALL MODE AWD/4WD" with CONSULT.
- Read out ON/OFF switching action of the "2WD SWITCH", "AUTO SWITCH", "LOCK SWITCH" and "4L SWITCH" while operating 4WD shift switch.
Without CONSULT
- Turn ignition switch "ON". (Do not start engine.)

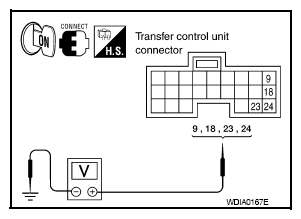

- Check voltage between transfer control unit harness connector terminals and ground.
Connector Terminal Condition Voltage (Approx.) M152 9 - ground 4WD shift switch: 2WD Battery voltage 4WD shift switch: AUTO, 4H or 4LO 0V 18 - ground 4WD shift switch: 4H Battery voltage 4WD shift switch: 2WD, AUTO or 4LO 0V 23 - ground 4WD shift switch: 4LO Battery voltage 4WD shift switch: 2WD, AUTO or 4H 0V 24 - ground 4WD shift switch: AUTO Battery voltage 4WD shift switch: 2WD, 4H or 4LO 0V Courtesy of NISSAN NORTH AMERICA, INC.
OK or NG
OK: GO TO 5.
NG: GO TO 2.
- CHECK 4WD SHIFT SWITCH POWER SUPPLY CIRCUIT
- Turn ignition switch "OFF". (Stay for at least 5 seconds.)
- Disconnect 4WD shift switch harness connector.

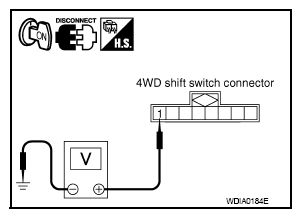

- Check voltage between 4WD shift switch harness connector terminal 1 and ground.
Connector Terminal Voltage (Approx.) M141 1 - Ground 0V - Turn ignition switch "ON". (Do not start engine.)
- Check voltage between 4WD shift switch harness connector terminal 1 and ground.
Connector Terminal Voltage (Approx.) M141 1 - Ground Battery voltage Courtesy of NISSAN NORTH AMERICA, INC.
OK or NG
OK: GO TO 3.
NG: Check the following. If any items are damaged, repair or replace damaged parts.
- Harness for short or open between transfer shut off relay harness connector E155 terminal 5.
- Power supply circuit for transfer control unit. Refer to "DIAGNOSIS PROCEDURE ".
- CHECK HARNESS BETWEEN 4WD SHIFT SWITCH AND TRANSFER CONTROL UNIT
- Turn ignition switch "OFF". (Stay for at least 5 seconds.)
- Disconnect transfer control unit harness connector and the 4WD shift switch harness connector.

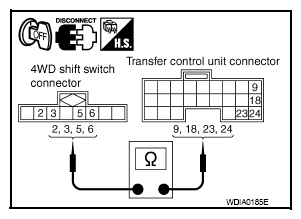

- Check continuity between the following terminals.
- Transfer control unit harness connector M152 terminal 9 and 4WD shift switch harness connector M141 terminal 2.
- Transfer control unit harness connector M152 terminal 18 and 4WD shift switch harness connector M141 terminal 5.
- Transfer control unit harness connector M152 terminal 23 and 4WD shift switch harness connector M141 terminal 6.
- Transfer control unit harness connector M152 terminal 24 and 4WD shift switch harness connector M141 terminal 3.
Continuity should exist .
Also check harness for short to ground and short to power.
OK or NG
OK: GO TO 4.
NG: Repair or replace damaged parts.
- CHECK 4WD SHIFT SWITCH
- Turn ignition switch "OFF". (Stay for at least 5 seconds.)
- Disconnect 4WD shift switch harness connector.

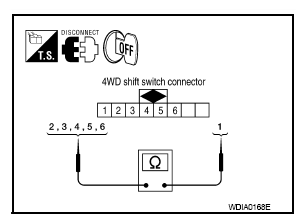

- Operate 4WD shift switch and check continuity between 4WD shift switch terminals.
Connector Terminal Condition Continuity M141 1 - 2 4WD shift switch: 2WD Yes 4WD shift switch: AUTO, 4H and 4LO No 1 - 3 4WD shift switch: AUTO Yes 4WD shift switch: 2WD, 4H and 4LO No 1 - 4 4WD shift switch: 2WD No 4WD shift switch: AUTO, 4H and 4LO Yes 1 - 5 4WD shift switch: 4H Yes 4WD shift switch: 2WD, AUTO, and 4LO No 1 - 6 4WD shift switch: 4LO Yes 4WD shift switch: 2WD, AUTO and 4H No OK or NG
OK: GO TO 5.
NG: Replace 4WD shift switch.
- CHECK TRANSFER CONTROL UNIT
Check transfer control unit input/output signal. Refer to "REFERENCE VALUE ".
OK or NG
OK: GO TO 6.
NG: Check transfer control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace damaged parts.
- CHECK DTC
Perform the self-diagnosis, after driving a vehicle for a while.
OK or NG
OK: Inspection End.
NG: Replace transfer control unit. Refer to "REMOVAL AND INSTALLATION ".
