VQ40DE Models

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Disconnect the negative battery terminal.
Remove starter cover bolts and starter cover.
Disconnect terminal "S" connector and terminal "B" nut.
Remove the two starter bolts, using power tools.
Remove the starter.

Fig 1: Locating Terminal "S" Connector And Terminal "B" Nut
Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.

CAUTION: Tighten terminal "B" nut carefully.

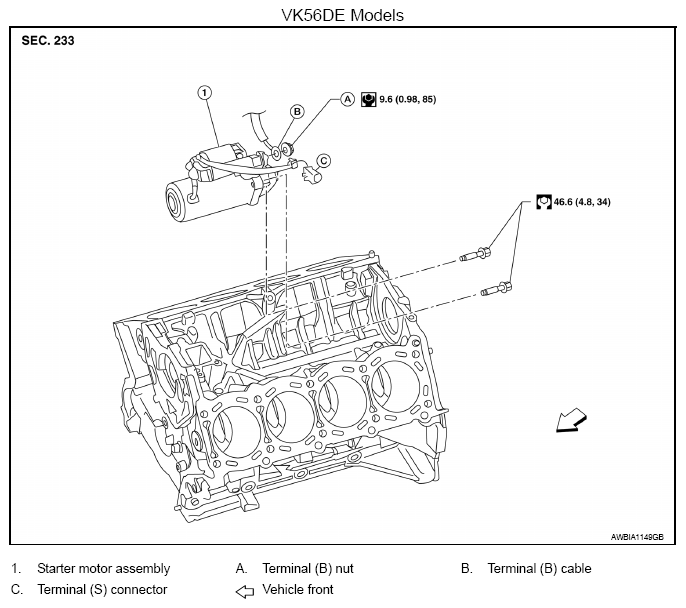

Fig 2: Identifying Starter Motor Assembly, Terminal B Nut, Cable And Terminal "S" Connector (VK56DE Models)

Courtesy of NISSAN NORTH AMERICA, INC.
