VQ40DE: Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

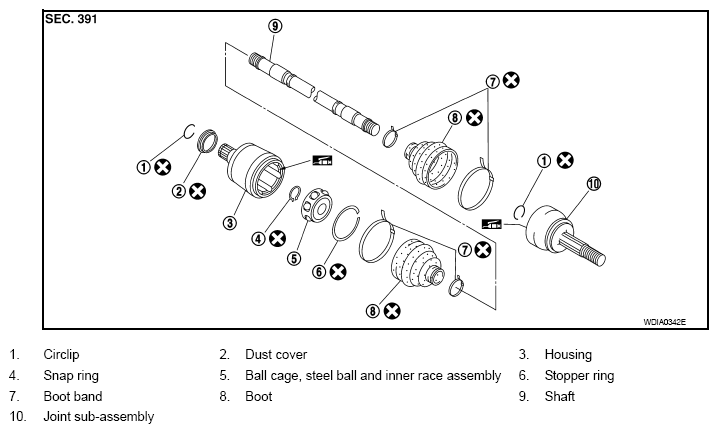

Fig 1: Disassembled View Of Drive Shaft With Torque Specifications
G08166838Courtesy of NISSAN NORTH AMERICA, INC.
