DRIVER SIDE: Diagnosis Procedure

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM - WITH INTELLIGENT KEY SYSTEM ".

1. CHECK DOOR LOCK ACTUATOR SIGNAL
   1. Turn ignition switch OFF.
   2. Check voltage between BCM connector M20 terminals 59, 65 and ground.

   Connector	Terminals		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   M20	59	Ground	Driver door lock/unlock switch is turned to UNLOCK	0 ↓ Battery voltage
   	65		Driver door lock/unlock switch is turned to LOCK	0 ↓ Battery voltage

   Fig 1: Checking Voltage Between BCM Connector M20 Terminals 59, 65 And Ground

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the inspection result normal?

   YES: GO TO 2

   NO: GO TO  3

2. CHECK DOOR LOCK ACTUATOR HARNESS
   1. Disconnect BCM and front door lock assembly LH (actuator).
   2. Check continuity between BCM connector (A) M20 terminals 59, 65 and front door lock assembly LH (actuator) connector (B) D14 terminals 1, 2.

   Connector	Terminals	Connector	Terminals	Continuity
   M20	59	D14	2	Yes
   	65		1

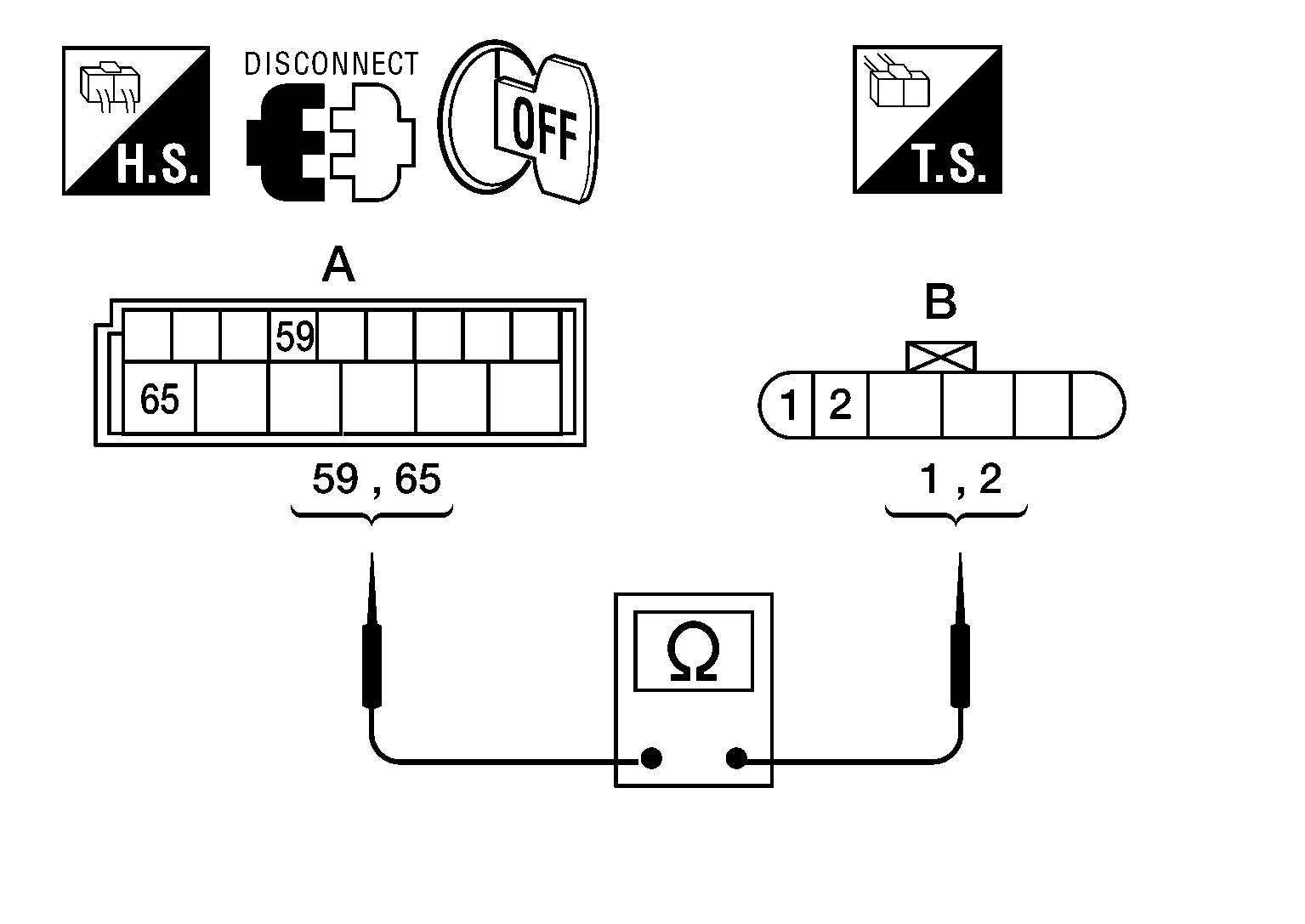

   Fig 2: Checking Continuity Between BCM Connector M20 And Front Door Lock Assembly LH (Actuator) Connector D14 Terminals

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the inspection result normal?

   YES: Replace front door lock assembly LH (actuator).

   NO: Repair or replace harness.

3. CHECK DOOR LOCK ACTUATOR HARNESS
   1. Disconnect BCM and front door lock assembly LH (actuator).
   2. Check continuity between BCM connector M20 terminals 59, 65 and ground.

   Connector	Terminals		Continuity
   M20	59	Ground	No
   	65

   Fig 3: Checking Continuity Between BCM Connector M20 Terminals 59, 65 And Ground

   Courtesy of NISSAN NORTH AMERICA, INC.

   Is the inspection result normal?

   YES: Replace BCM. Refer to "REMOVAL AND INSTALLATION ".

   NO: Repair or replace harness.
