Power Steering Oil Pump Bracket (VQ40DE)

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove the power steering oil pump.
Remove the bolts and the power steering oil pump bracket.

Installation

Position the bracket and install the bracket to block bolts finger tight.
Tighten the bolts to specification in order as shown.
Bracket to front of block bolt (1): 61.3 Nm (6.3 kg-m, 45 ft-lb)

Bracket to side of block bolt (2): 61.3 Nm (6.3 kg-m, 45 ft-lb)
Install the power steering oil pump.

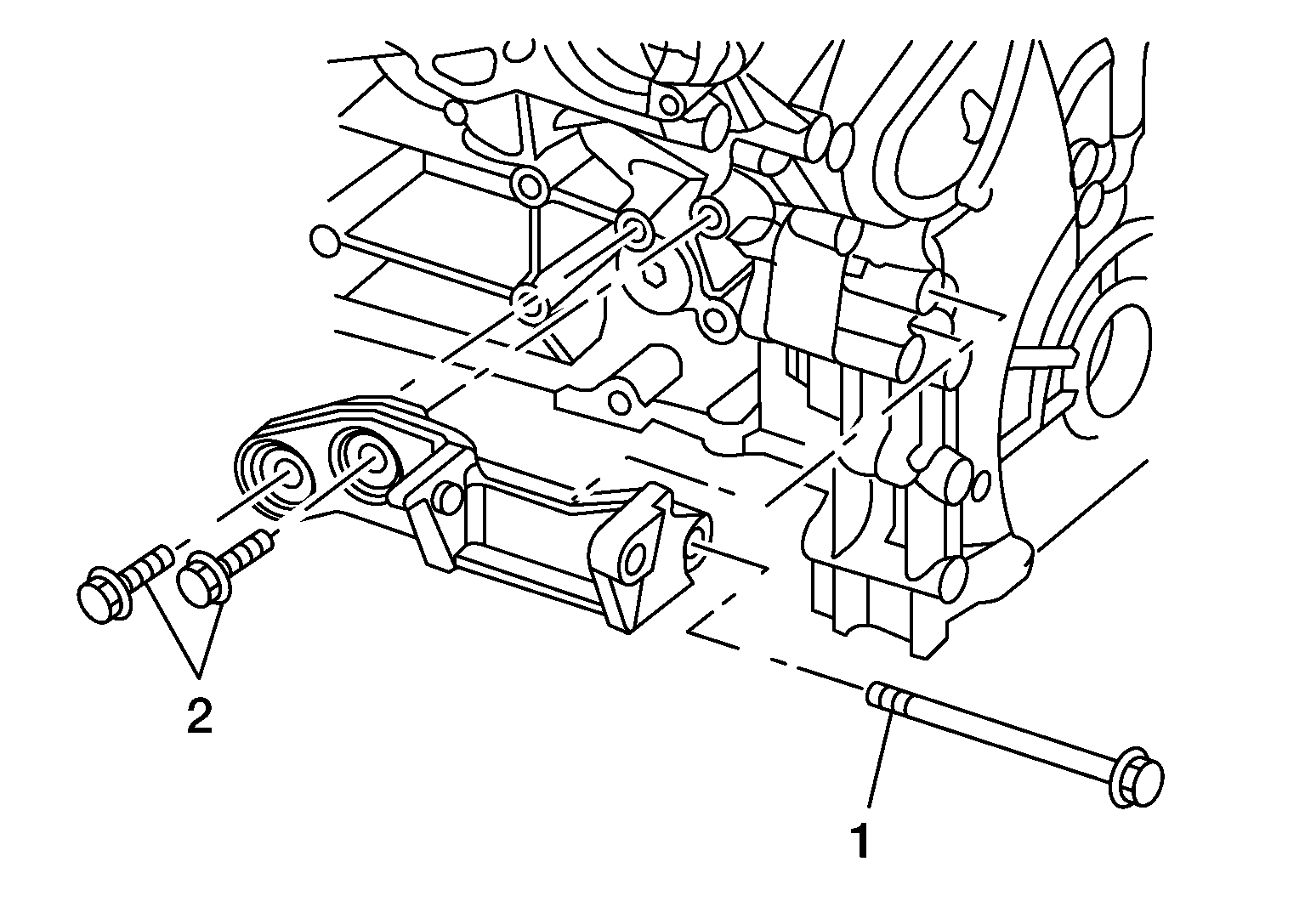

Fig 1: Identifying Power Steering Oil Pump Bracket Bolts Tightening Order (VQ40DE)
Courtesy of NISSAN NORTH AMERICA, INC.
