Removal and Installation

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the following illustrations for hydraulic line removal and installation.

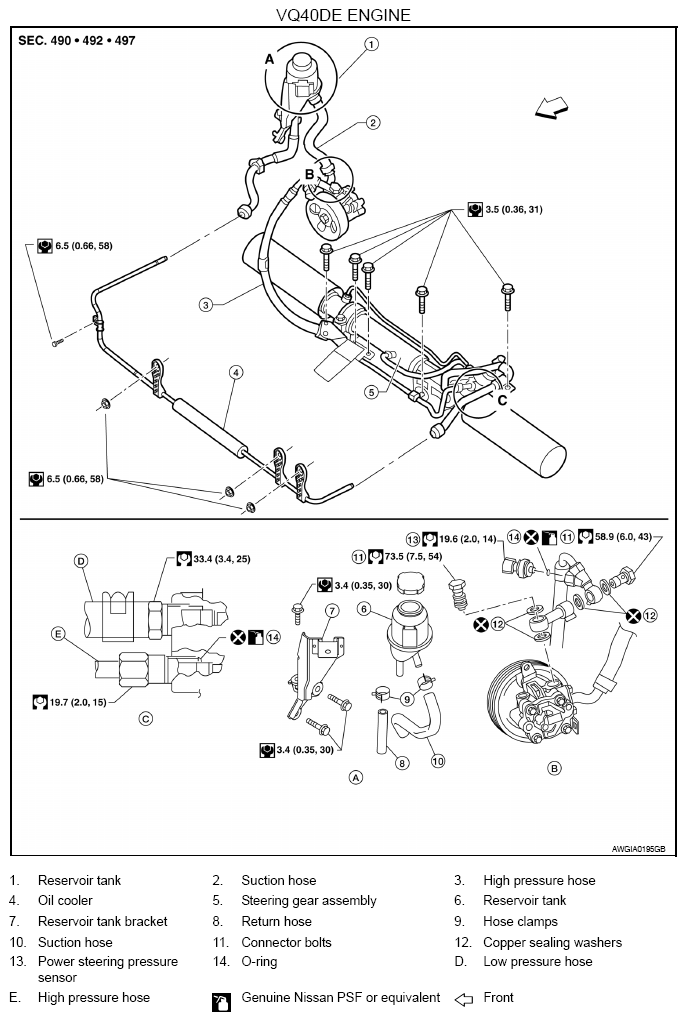

Fig 1: Exploded View Of Hydraulic Line (VQ40DE Engine) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

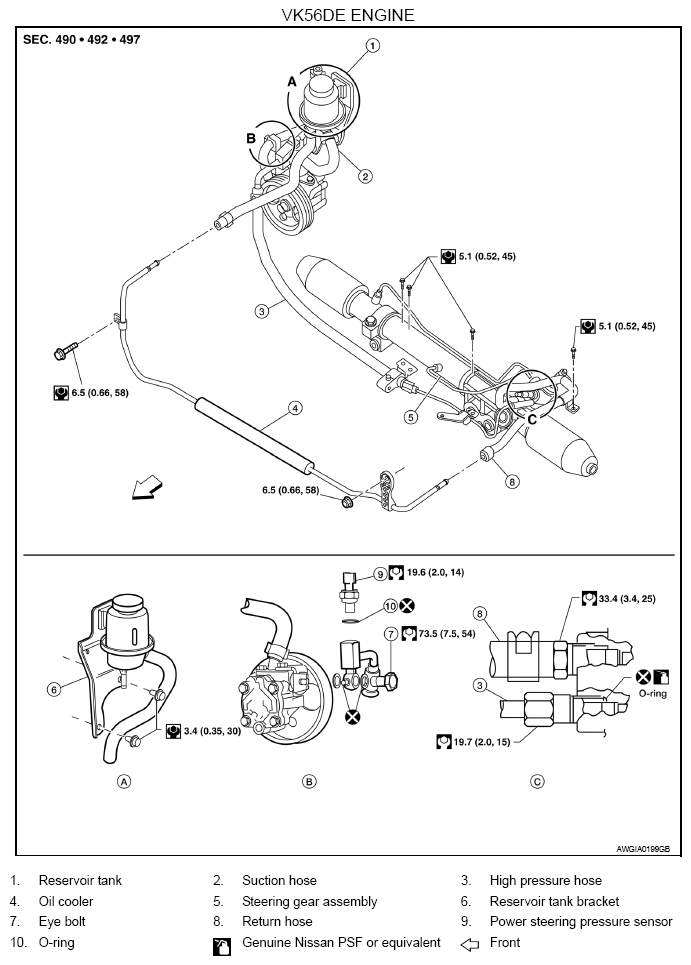

Fig 2: Exploded View Of Hydraulic Line (VK56DE Engine) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
