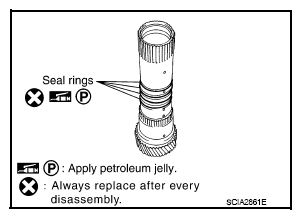

Install seal rings to mid sun gear.
CAUTION:
- Do not reuse seal rings.
- Apply petroleum jelly to seal rings.

  Fig 1: Identifying Mid Sun Gear Seal Rings
  Courtesy of NISSAN NORTH AMERICA, INC.

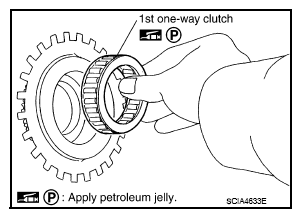

Install 1st one-way clutch to rear sun gear.
CAUTION: Apply petroleum jelly to 1st one-way clutch.

Fig 2: Removing/Installing Rear Sun Gear 1st One-Way Clutch
Courtesy of NISSAN NORTH AMERICA, INC.

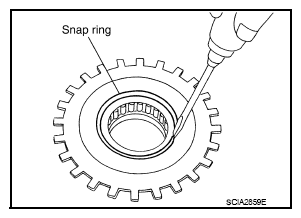

Install snap ring to rear sun gear using suitable tool.

Fig 3: Removing/Installing Rear Sun Gear Snap Ring Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.

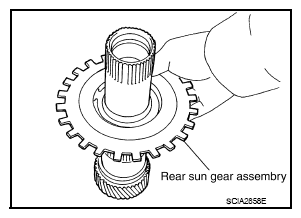

Install rear sun gear assembly to mid sun gear assembly.

Fig 4: Removing/Installing Mid Sun Gear Rear Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing to high and low reverse clutch hub.
CAUTION: Apply petroleum jelly to needle bearing.

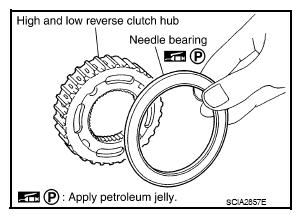

Fig 5: Removing/Installing High And Low Reverse Clutch Hub Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.

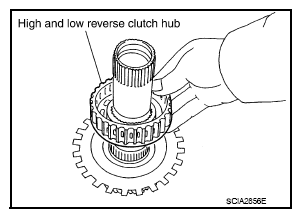

Install high and low reverse clutch hub to mid sun gear assembly.

Fig 6: Removing/Installing Mid Sun Gear Assembly High And Low Reverse Clutch Hub
Courtesy of NISSAN NORTH AMERICA, INC.

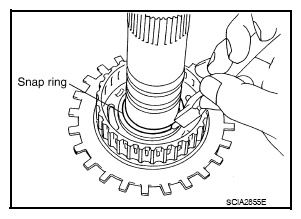

Install snap ring to mid sun gear assembly using suitable tool.
CAUTION: Do not excessively expand snap ring.

Fig 7: Removing/Installing Mid Sun Gear Assembly Snap Ring Using Snap Ring Pliers
Courtesy of NISSAN NORTH AMERICA, INC.

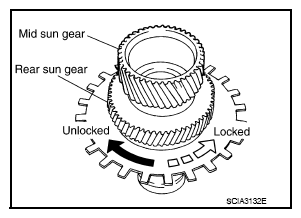

Check operation of 1st one-way clutch.
1. Hold mid sun gear and turn rear sun gear.
2. Check 1st one-way clutch for correct locking and unlocking directions.
  CAUTION: If not as shown, check installation direction of 1st one-way clutch.

  Fig 8: Checking 1st One-Way Clutch For Correct Locking And Unlocking
  Courtesy of NISSAN NORTH AMERICA, INC.

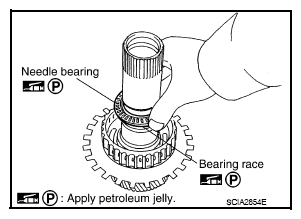

Install needle bearing and bearing race to high and low reverse clutch hub.
CAUTION: Apply petroleum jelly to needle bearing and bearing race.
- VQ40DE models

  Fig 9: Removing/Installing Needle Bearing And Bearing Race (VQ40DE Models)
  Courtesy of NISSAN NORTH AMERICA, INC.
- VK56DE models

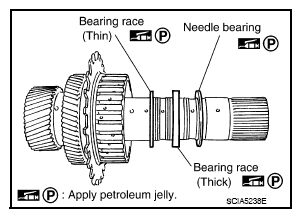

  Fig 10: Identifying Needle Bearing And Bearing Race (VK56DE Models)
  Courtesy of NISSAN NORTH AMERICA, INC.
