Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.
CAUTION: Take care with the order of plates.
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Drive plate/Driven plate: 5/5

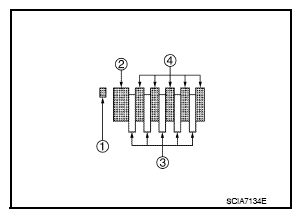

  Fig 1: Identifying Snap Ring, Drive, Driven And Retaining Plates
  Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring in high and low reverse clutch drum using suitable tool.

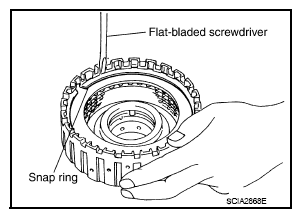

Fig 2: Removing/Installing High And Low Reverse Clutch Drum Snap Ring Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Install bearing race to high and low reverse clutch drum.
CAUTION: Apply petroleum jelly to bearing race.

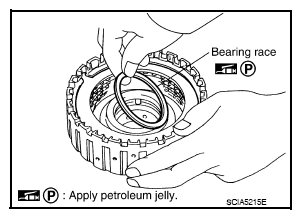

Fig 3: Removing/Installing High And Low Reverse Clutch Drum Bearing Race
Courtesy of NISSAN NORTH AMERICA, INC.
