Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap ring from front sun gear using suitable tool.

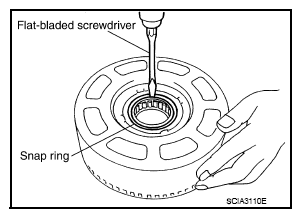

    Fig 1: Removing/Installing Snap Ring From Front Sun Gear Using Screwdriver
    G08165647Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove 3rd one-way clutch from front sun gear.

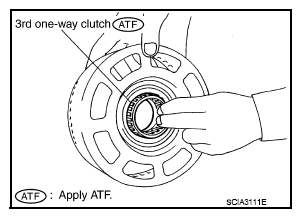

    Fig 2: Removing/Installing 3rd One-Way Clutch From Front Sun Gear
    G08165648Courtesy of NISSAN NORTH AMERICA, INC.
